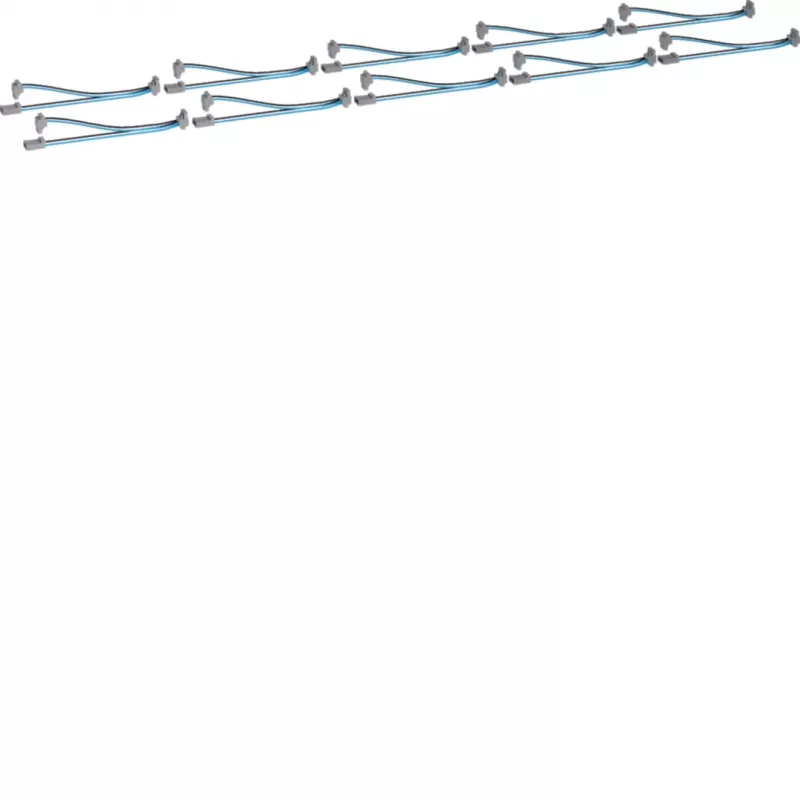

HAGER KU9S20YZ KNX Y-verbindingskabel, 1 stekker naar 2 bussen, 20 cm, zwart/blauw, 10-pack

In KNX installations, branching a bus line often requires additional connectors or awkward wiring. The HAGER KU9S20YZ solves this with a ready-made Y-connection cable that splits one KNX bus connection into two, enabling clean and reliable device connections without extra components.

Who is it for

Electricians and system integrators working with KNX/EIB building automation who need to branch bus lines or connect multiple devices from a single bus point. It is suitable for indoor use in distribution boards or installation boxes.

Main features

• Y-configuration: 1 KNX plug to 2 KNX sockets
• Cable length: 20 cm for flexible placement
• Colour: black/blue for easy identification
• Supplied in pack of 10 pieces
• Compatible with KNX/EIB bus systems

Specifications

• Product type: KNX Y-connection cable
• Connector configuration: 1 plug / 2 sockets
• Cable length: 20 cm
• Colour: black / blue
• Packaging unit: 10 pieces
• Conductor material: copper
• Insulation material: PVC
• Rated voltage: 30V DC (KNX bus voltage)
• Conductor cross-section: 0.8 mm²
• Connector type: KNX bus terminal
• Mounting type: plug-in connection
• Operating temperature: -5°C to +45°C
• Storage temperature: -25°C to +70°C
• Protection class: IP20
• Standards: KNX standard

Tips

Use this Y-cable to neatly branch a KNX line inside a distribution board, reducing wiring clutter. Ensure the total bus length and device count comply with KNX topology rules.
