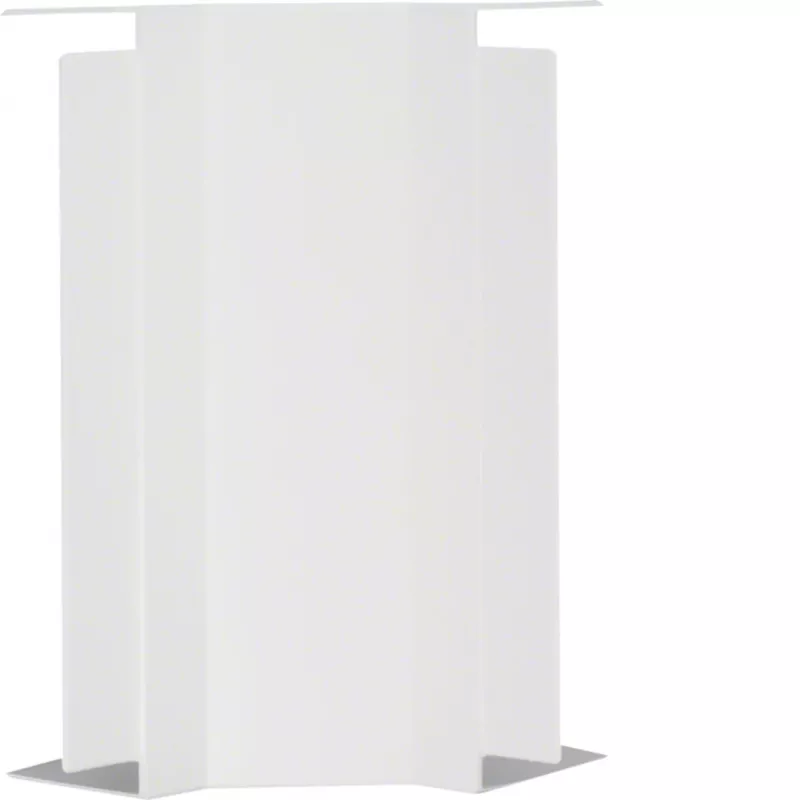

HAGER LF6023049016 binnenhoek verkeerswit voor 60x230 kabelgoot

When a cable trunking run meets a 90-degree wall corner, a straight length cannot follow the bend. The HAGER LF6023049016 Inner Corner solves this by providing a clean, professional turn for the LF 60x230 trunking system. It snaps onto the trunking profile without tools, keeping cables protected and the installation looking tidy.

Who is it for

Electricians and installers working with Hager LF 60x230 cable trunking in commercial or residential projects. It suits anyone who needs to route cables around internal corners while maintaining a continuous, enclosed channel.

Main features

• Inner corner piece for 90-degree turns in Hager LF 60x230 trunking.
• Snap-on installation – no screws or adhesive required.
• Made from PVC with UV resistance and self-extinguishing properties.
• Traffic white (RAL 9016) finish matches the trunking system.
• Halogen-free: No.
• Operating temperature range: -5 °C to +60 °C.

Specifications

• Product type: Inner corner
• Compatible trunking height: 60 mm
• Compatible trunking width: 230 mm
• Corner angle: 90 degrees
• Material: PVC
• Colour: Traffic white (RAL 9016)
• Installation method: Snap-on / clip-on
• UV resistance: Yes
• Self-extinguishing: Yes
• Operating temperature: -5 °C to +60 °C

Tips

For a seamless look, pair this inner corner with the matching Hager LF 60x230 trunking lengths and couplers. Ensure the trunking ends are cut square before snapping the corner into place.
