Hager LFS601500VERZ kabelgoot van verzinkt staal 60x150mm, 2m lengte

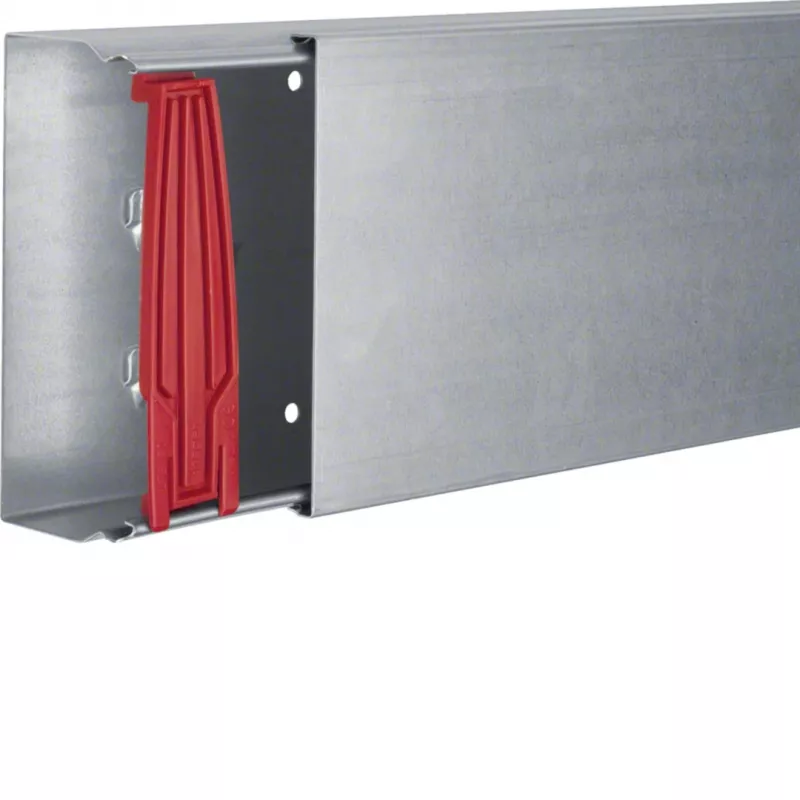

Electricians and panel builders use the Hager LFS601500VERZ cable management channel to route and protect wiring in commercial, industrial, and residential installations. This galvanized steel channel measures 60 mm high and 150 mm wide, with a standard length of 2000 mm. The Sendzimir galvanized surface provides high corrosion resistance, making it suitable for demanding environments. The channel features perforated side walls and base for easy cable entry and ventilation, and it is halogen-free and UV-resistant. The cover is sold separately, allowing for flexible installation. Mountable on walls or ceilings, it complies with DIN EN 50085-1 and DIN EN 50085-2-1.

Key specifications

• Material: Steel, galvanized (Sendzimir)
• Dimensions: 60 mm height × 150 mm width × 2000 mm length
• Single compartment
• Perforated side walls and base
• Halogen-free and UV-resistant
• Operating temperature: -5°C to +60°C
• Standards: DIN EN 50085-1, DIN EN 50085-2-1

Why choose it

The galvanized steel construction ensures durability and long service life, even in corrosive atmospheres. The perforations allow for efficient heat dissipation and easy cable routing, while the halogen-free material enhances safety in case of fire. Its compliance with European standards guarantees reliable performance.

Ideal use cases

• Routing power and control cables in industrial plants
• Organizing wiring in commercial buildings
• Surface-mounted cable management in residential renovations
• Installations requiring high mechanical protection and corrosion resistance

Good to know

The cover is not included and must be ordered separately. The channel is suitable for wall and ceiling mounting but not for underfloor installation. Its metallic silver color blends with typical metallic enclosures.
