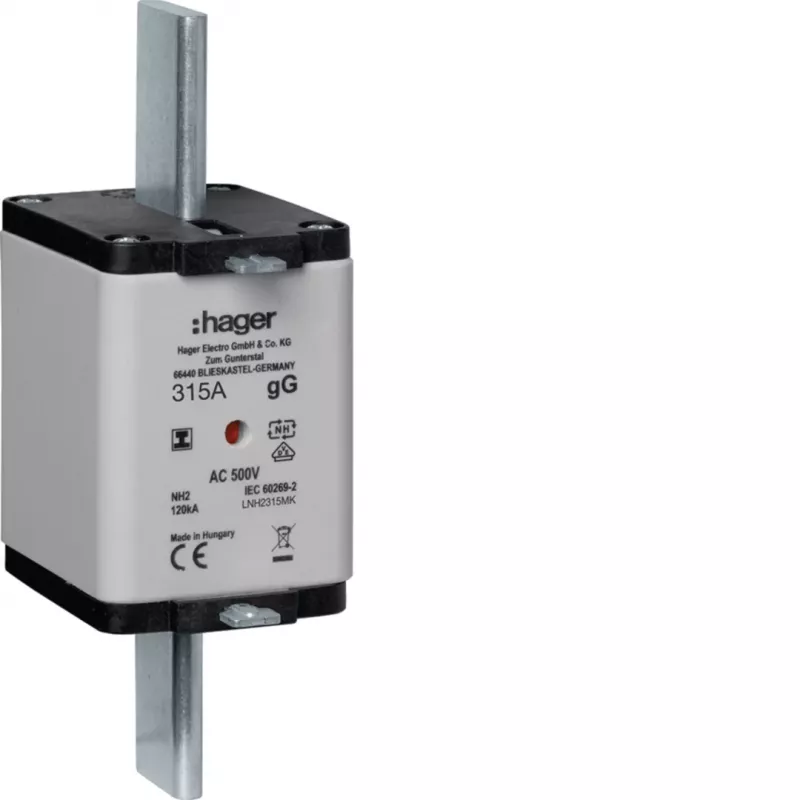

HAGER LNH2315MK NH-zekeringinzet 315A 500V gG maat NH2

With a breaking capacity of 120 kA, the HAGER LNH2315MK NH fuse link provides robust protection for cable and line applications. Rated at 315 A and 500 V AC, this NH2 size fuse is engineered for general purpose (gG) use, ensuring reliable operation in demanding electrical installations.

Overview

The HAGER LNH2315MK is a NH fuse link designed for use in low-voltage distribution systems. It features a blade contact design and a top indicator for clear status indication. The fuse body is made of ceramic, offering excellent thermal and mechanical stability. It complies with IEC/EN 60269-2 and operates at 50/60 Hz with a power dissipation of 32 W.

What stands out

• High breaking capacity of 120 kA for superior short-circuit protection
• General purpose gG operating class suitable for cable and line protection
• Top indicator provides visual indication of fuse status
• Ceramic body ensures durability and heat resistance

Technical details

• Fuse type: NH Fuse Link
• Fuse size: NH2
• Rated current: 315 A
• Rated voltage: 500 V AC
• Operating class: gG
• Breaking capacity: 120 kA
• Contact type: Blade contact
• Indicator type: Top indicator
• Application: Cable and line protection
• Standard: IEC/EN 60269-2
• Rated frequency: 50/60 Hz
• Power dissipation: 32 W
• Body material: Ceramic
• Operating temperature range: -5°C to +40°C

Our verdict

The HAGER LNH2315MK is a reliable NH fuse link for industrial and commercial electrical systems. Its high breaking capacity and general purpose gG characteristics make it a solid choice for protecting cables and lines against overloads and short circuits.
