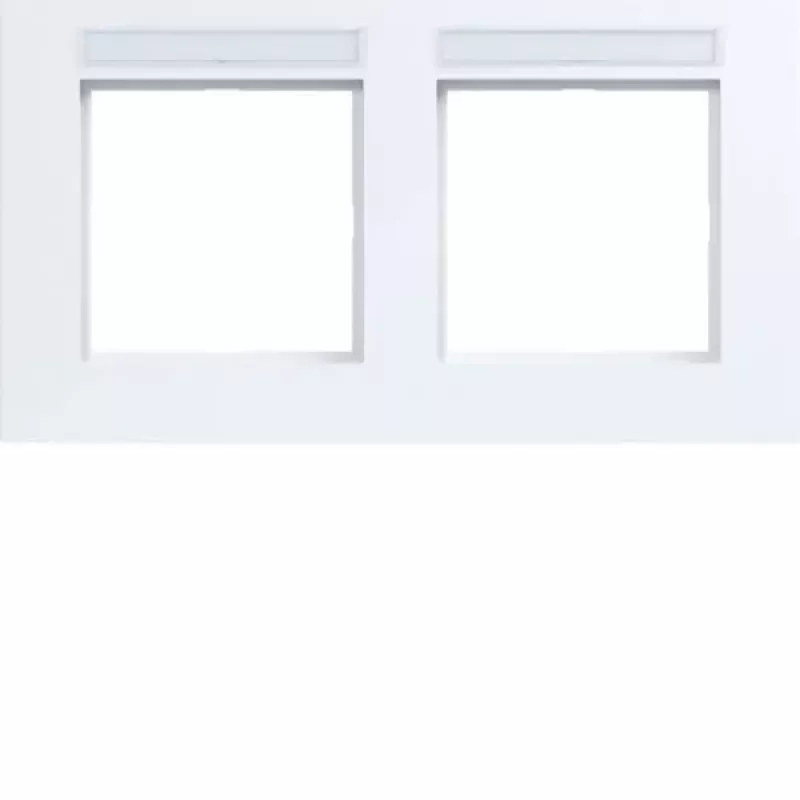

Hager Lumière Design A.8 2-voudig horizontaal afdekraam, lichtwit glanzend WAD8202WG

The Hager WAD8202WG is a 2-gang horizontal cover frame from the Lumière Design A.8 series, finished in light white with a glossy surface. It is designed to clip onto compatible inserts, providing a clean and uniform appearance for interior electrical installations.

Highlights

• 2-gang horizontal frame for flush-mounted inserts
• Light white (RAL 9010) glossy finish
• Made of halogen-free thermoplastic
• Clip-on mounting for quick installation
• UV-resistant and impact-resistant (IK05)

In daily use

This frame covers the mounting area around switches and sockets, creating a seamless look. Its glossy light white surface complements modern interiors and is easy to clean. The clip-on mechanism allows tool-free attachment to compatible Hager Lumière Design A.8 inserts.

Full specifications

• Product type: Cover frame
• Number of gangs: 2
• Mounting orientation: Horizontal
• Design line: Hager Lumière Design A.8
• Colour: Light white (RAL 9010)
• Surface finish: Glossy
• Material: Thermoplastic
• Halogen-free: Yes
• Suitable for flush mounting: Yes
• IP protection class: IP20
• Impact resistance: IK05
• UV resistance: Yes
• Operating temperature range: -5 to +40 °C
• Storage temperature range: -25 to +55 °C
• Glow wire test: 850 °C
• Mounting method: Clip-on
• Main application: Interior electrical installations
• Compatibility: Hager Lumière Design A.8 inserts

Final note

This frame is part of the Lumière Design A.8 range and is intended for use with matching inserts from the same series.
