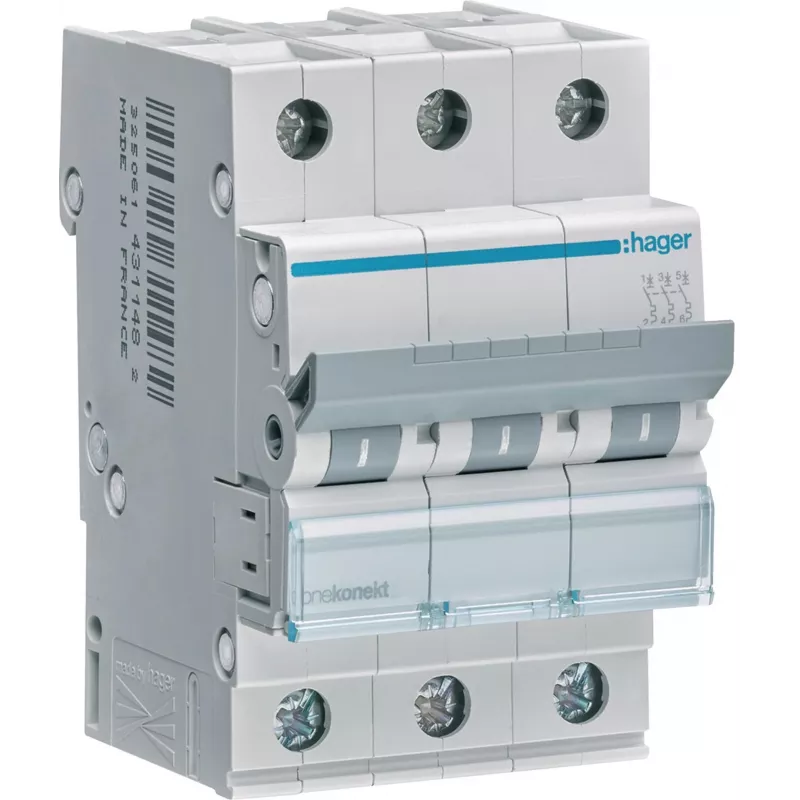

Hager MBN316E installatieautomaat 3-polig 16A uitschakelkarakteristiek B 6kA DIN-rail

The Hager MBN316E is a high-quality miniature circuit breaker (MCB) designed for reliable protection of electrical circuits against overloads and short circuits. With a rated current of 16A, 3 poles, and a B tripping curve, it is ideal for residential and commercial applications where sensitive loads such as lighting and small appliances are present. This MCB complies with EN 60898-1 and offers a breaking capacity of 6kA, ensuring safety and performance.

Advantages

• Reliable overload and short-circuit protection
• B curve for fast tripping with low inrush currents
• Compact 3-pole design saves space on DIN rail
• High breaking capacity of 6kA for enhanced safety
• Easy installation with screw terminals accepting up to 25mm² rigid wire
• Durable construction with 20,000 mechanical cycles

Suitable for

• Residential electrical panels
• Commercial lighting circuits
• Small appliance protection
• General purpose distribution boards

Key specifications

• Rated Current (In): 16 A
• Number of Poles: 3P
• Tripping Curve: B
• Short-circuit Breaking Capacity (Icn): 6 kA
• Rated Operational Voltage (Ue): 230/400 V AC
• Rated Insulation Voltage (Ui): 500 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Terminal Type: Screw terminals
• Terminal Capacity (Rigid): 1 to 25 mm²
• Terminal Capacity (Flexible): 1 to 16 mm²
• Degree of Protection (IP): IP20 (terminals), IP40 (device in enclosure)
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Standard: EN 60898-1
• Operating Temperature: -25 to 60 °C
• Storage Temperature: -40 to 70 °C
• Energy Limiting Class: 3
• Pollution Degree: 2

Recommendations

For optimal protection, pair this MCB with a compatible RCCB or RCBO. Always consult a qualified electrician for installation and ensure compliance with local regulations.
