HAGER meterkast-accessoireset ZU21A, 900mm, 1 meterpositie, voorgemonteerd, 3-fasig, 63A

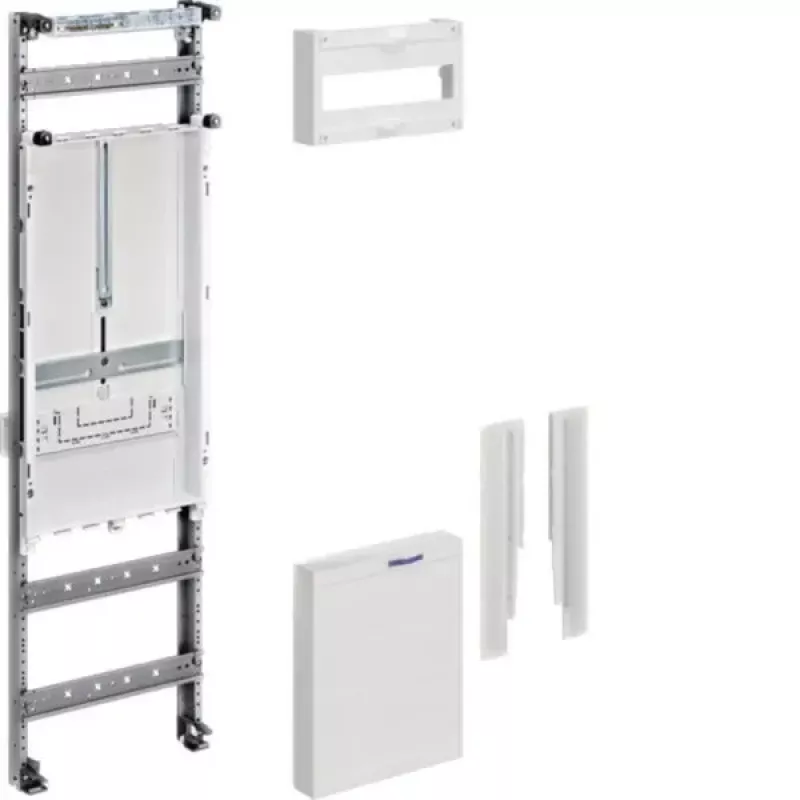

Metering installation kit for distribution boards, pre-equipped for one three-phase meter position with a field height of 900 mm. The kit includes a 63 A main switch, 5-pole busbar system, PE/N terminals, and pre-wired connections, enabling fast and compliant installation in standard distribution cabinets.

Advantages

Pre-equipped and pre-wired for immediate installation, reducing on-site assembly time. The integrated 5-pole busbar and PE/N terminals ensure safe and tidy wiring. The galvanized steel frame provides durability, while the 900 mm field height offers ample space for meter and additional equipment.

Suitable for

• Electricity metering in residential and commercial distribution boards
• Three-phase installations requiring a 63 A main switch
• Standard distribution cabinets with DIN rail mounting

Key specifications

• Number of meter positions: 1
• Field configuration: 1-field
• Installation height: 900 mm
• Main switch rated current: 63 A
• Number of phases: 3-phase
• Busbar system: 5-pole, included
• Terminal blocks: PE/N terminals included
• Wiring: Pre-wired
• Distribution rows available: approx. 3-4 rows
• Module units (TE) per row: 12-14 TE
• Material: Galvanized steel frame, plastic components, copper busbars
• Standards compliance: DIN VDE

Recommendations

For a complete metering setup, pair with a compatible HAGER distribution board and energy meter. Ensure the cabinet depth accommodates the 900 mm field height and the busbar system aligns with the existing infrastructure.
