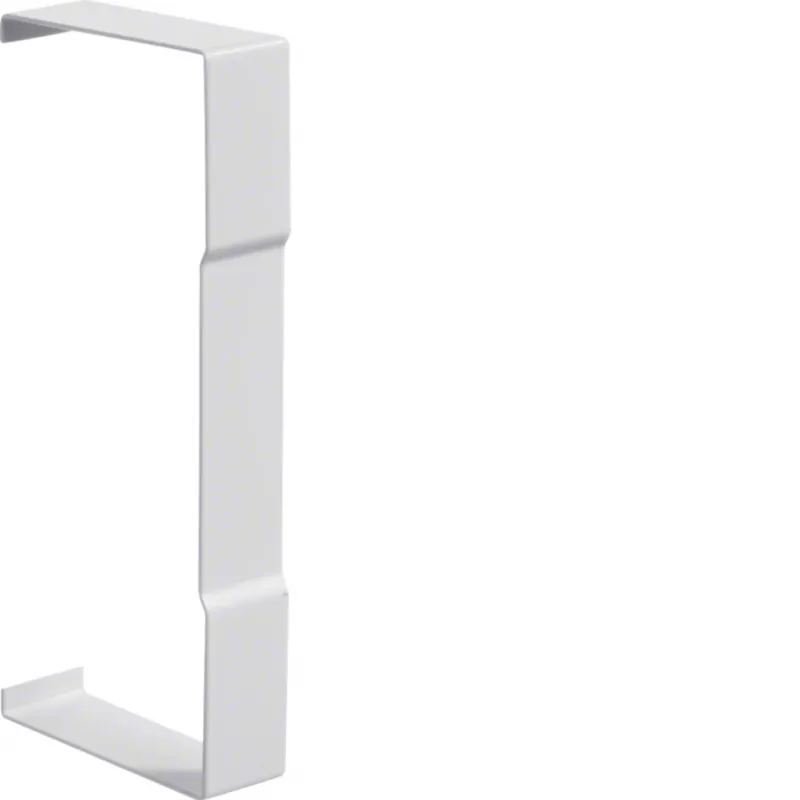

Hager snijafdekking BR6517079016 68x170mm OT 80mm verkeerswit (RAL 9016)

Electricians and installers working with Hager BR65x170mm cable trunking use this cut cover to neatly conceal and protect cut edges, ensuring a clean, professional finish. The cover snaps onto the trunking without tools, covering exposed cuts where trunking sections meet or terminate.

Key specifications

• Compatible trunking: Hager BR65x170mm
• Colour: Traffic White (RAL 9016)
• Material: PVC, halogen-free and self-extinguishing
• Mounting: Snap-on / clip-on
• Dimensions: 80 mm width, 170 mm height, approx. 20 mm depth
• Temperature resistance: -5°C to +60°C

Why choose it

This cut cover matches the trunking profile exactly, maintaining a seamless appearance. The halogen-free PVC material is self-extinguishing, adding safety in electrical installations. Its snap-on design allows quick installation without adhesives or screws.

Ideal use cases

• Finishing cut ends of Hager BR65x170mm trunking in commercial or residential wiring
• Covering joints where trunking meets walls, ceilings, or other trunking sections
• Retrofitting existing installations to improve appearance and edge protection

Good to know

The cover is designed specifically for Hager BR65x170mm trunking and is not a universal accessory. It provides protection rating IP30 when installed with compatible trunking. The product is RoHS compliant.
