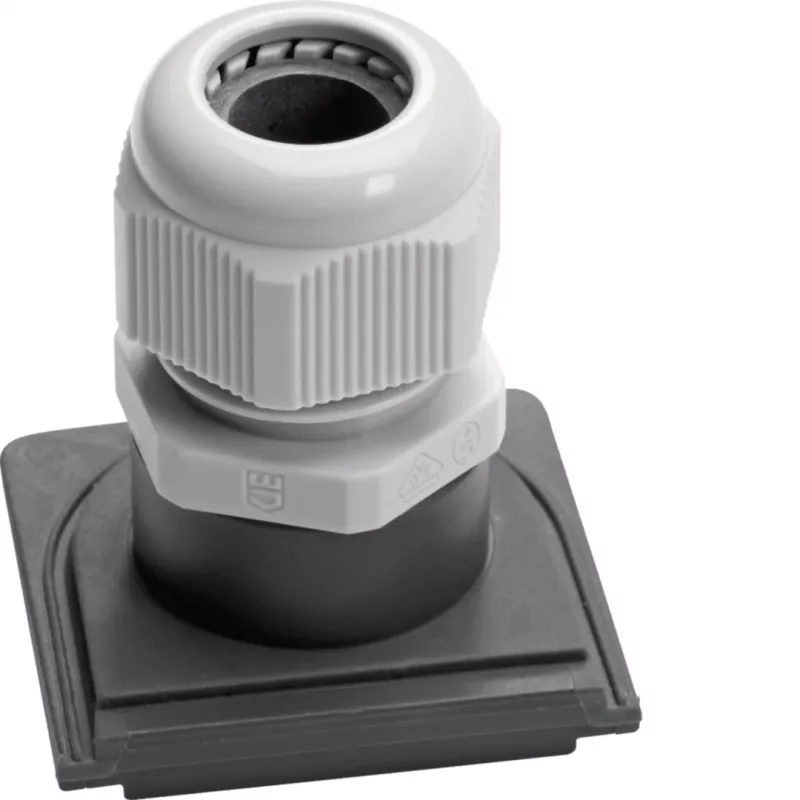

Hager Tehalit WNA701 M20x1.5 kabelwartel met contramoer voor W.1-behuizing, grijs

When routing cables into a W.1 enclosure, achieving a secure, IP-rated seal is critical to protect electrical connections from dust and moisture. The Hager Tehalit WNA701 cable entry solves this by providing a robust M20x1.5 threaded gland with locknut, designed specifically for AP W.1 enclosures. Its polyamide construction and TPE seal ensure reliable strain relief and environmental protection, making it a dependable choice for industrial and outdoor installations.

Who is it for

This cable entry is ideal for electricians, panel builders, and maintenance technicians who need to bring cables into Spelsberg W.1 series enclosures while maintaining ingress protection up to IP66/IP67. It suits applications in harsh environments, including industrial machinery, outdoor equipment, and any setting where dust, water, or UV exposure is a concern.

Main features

• Metric M20 x 1.5 thread with locknut for secure mounting
• Accommodates cable diameters from 6 mm to 13 mm
• High-quality polyamide (PA) body, grey RAL 7035
• TPE seal provides reliable strain relief and sealing
• IP66/IP67 protection when properly installed
• UV resistant and halogen-free for demanding environments
• Wide operating temperature range: -25°C to +100°C
• Complies with DIN EN 62444

Specifications

• Brand: Hager Tehalit
• Model: WNA701
• MPN: WNA701
• EAN: 3250610101186
• Thread type: Metric
• Thread size: M20 x 1.5
• Cable diameter range: 6 - 13 mm
• Material: Polyamide (PA)
• Colour: Grey (RAL 7035)
• Ingress protection: IP66 / IP67 (when properly installed)
• Operating temperature: -25°C to +100°C
• Flammability rating: UL94 V-2
• Halogen-free: Yes
• UV resistant: Yes
• Mounting type: Screw-in (threaded)
• Gland type: Cable entry with locknut
• Compatible enclosure series: Spelsberg W.1
• Number of cables: 1
• Seal material: TPE (Thermoplastic Elastomer)
• Standards: DIN EN 62444
• Application: Industrial, outdoor, harsh environments

Tips

For optimal sealing, ensure the cable outer diameter falls within the specified range and tighten the locknut securely against the enclosure wall. Use a suitable spanner to avoid over-tightening, which could damage the gland or compromise the seal. When installing outdoors, position the gland to minimize direct water exposure and consider additional sealing washers if required.
