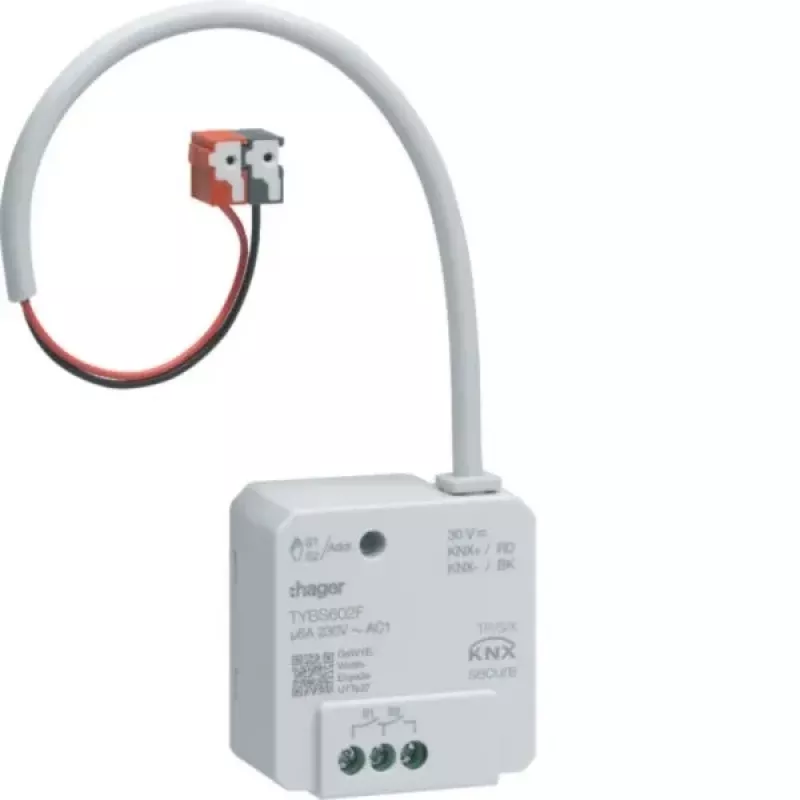

Hager TYBS602F KNX schakel-/jaloezieactor, 2/1 kanaal, 6 A, inbouwmontage

In KNX installations, controlling lighting and blinds from a central point often requires separate devices for switching and blind control. The Hager TYBS602F combines both functions in one flush-mounted actuator, saving space and simplifying wiring.

Who is it for

Electricians and system integrators working on KNX building automation projects who need a compact, bus-powered actuator for switching loads and controlling blinds or shutters.

Main features

• Two independent switching channels, each rated 6 A at 250 V AC.
• One blind output for controlling 230 V AC blind motors with up/down and slat adjustment.
• Manual operation via push button on the device for testing and commissioning.
• Powered directly from the KNX bus (21-30 V DC), no separate power supply needed.
• Supports time functions (delay, staircase), scenes, status feedback, and central functions.
• Blind control includes position feedback and safety functions like wind/rain alarm.
• Configured with ETS software.

Specifications

• Bus system: KNX
• Device type: Switch and blind actuator
• Number of switching channels: 2
• Number of blind channels: 1
• Rated current per switching channel: 6 A
• Rated voltage (switching): 250 V AC
• Mounting type: Flush-mounted (in-wall)
• Bus voltage: 21-30 V DC
• Power supply: KNX bus-powered
• Connection type: Screw terminals (load), bus terminal (KNX)
• Operating temperature: -5 to +45 °C
• Relative humidity: 5 to 93 % (non-condensing)
• Power consumption from bus: max. 10 mA

Tips

For blind control, ensure the motor current does not exceed the actuator's rating. Use the manual button to test wiring before downloading the ETS application.
