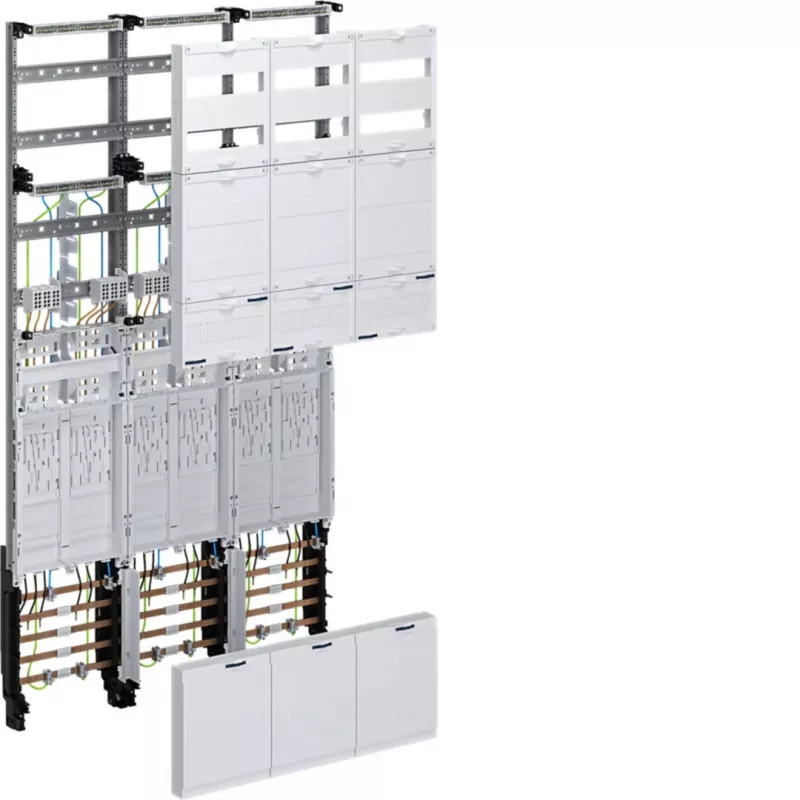

Hager univers Z compleet meterveld ZL5EL26, 1350 mm, 6 eHZ-plaatsen, 3-veld, voorbedraad

For electricians and panel builders installing a modern metering setup in residential or commercial buildings, the Hager univers Z complete metering field provides a pre-wired, ready-to-mount solution. This 1350 mm high, 3-field unit accommodates six electronic household meters (eHZ) and integrates the APZ space for the smart meter gateway, simplifying compliance with current metering standards.

Key specifications

• Product type: Complete metering field
• System series: Hager univers Z
• Number of meter positions: 6
• Meter type compatibility: eHZ (electronic household meter)
• Number of fields/rows: 3
• Rated current (busbar): 250 A
• Busbar system: 5-pole
• Main line branch terminal: 5-pole
• APZ space: Integrated (for Smart Meter Gateway)
• APZ connection: RJ45
• PE/N terminals: Included
• Mounting type: For univers Z distribution cabinets
• Construction: Pre-wired, modular
• Material: Steel sheet
• Standards compliance: VDE approved
• Application: Residential and commercial metering installations

Why choose it

The pre-wired design reduces installation time and eliminates wiring errors. The integrated APZ space and RJ45 connection are ready for smart meter gateways, ensuring future-proof metering infrastructure. The 5-pole busbar system supports a rated current of 250 A, suitable for demanding applications.

Ideal use cases

• Multi-tenant residential buildings with up to six metering points
• Commercial properties requiring centralized metering
• Upgrades to smart metering systems

Good to know

This metering field is designed for use with Hager univers Z distribution cabinets. It is VDE approved and constructed from steel sheet for durability. The modular design allows for flexible configuration within the cabinet.
