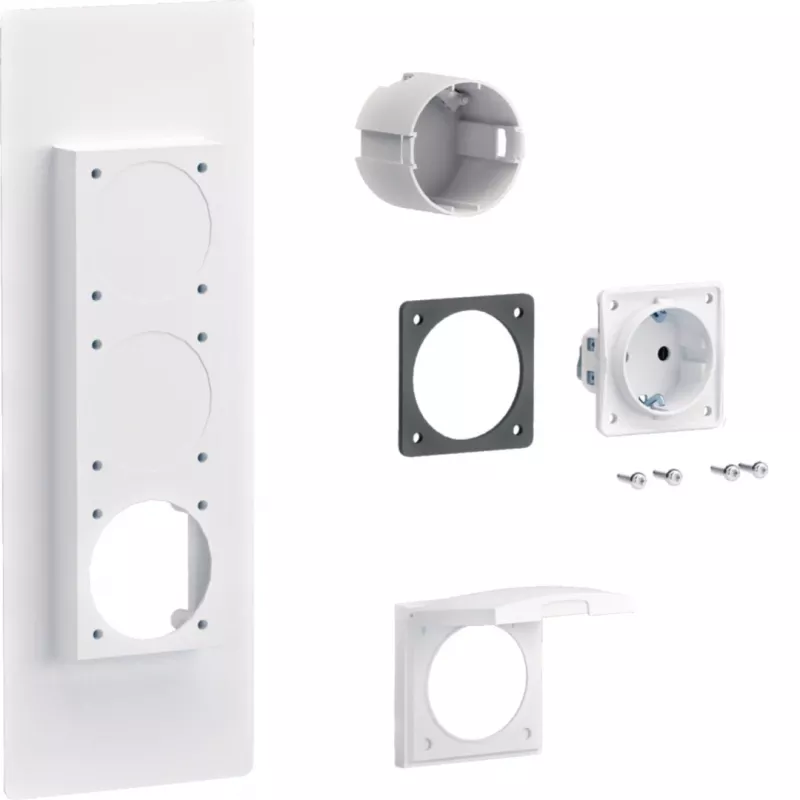

Hager universZ flensgemonteerd schuko-stopcontact, 1-voudig, 250 V, 16 A, lichtgrijs ZY01SD

Electricians and panel builders need a reliable power socket inside meter cabinets and distribution boards. The Hager ZY01SD provides a single Schuko socket on a flange, designed for the universZ system. It mounts directly into the enclosure wall, giving a convenient service outlet for testing or temporary equipment.

Key specifications

• Socket type: Schuko (Type F)
• Number of sockets: 1
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Mounting type: Flange mounting
• System compatibility: Hager universZ
• Connection type: Screw terminals
• Max. conductor cross-section: 2.5 mm² (rigid)
• Protection class: IP20
• Material: Thermoplastic
• Colour: Light grey (RAL 7035)
• Module units: 2.5 TE

Why choose it

The flange design integrates neatly with Hager universZ enclosures. Screw terminals accept solid conductors up to 2.5 mm², making wiring straightforward. The light grey thermoplastic housing matches standard distribution equipment.

Ideal use cases

• Meter cabinets
• Distribution boards
• Control panels needing a service socket

Good to know

The socket is rated IP20 for indoor use. It complies with CE and VDE standards. Installation requires a flange cut-out compatible with universZ dimensions.
