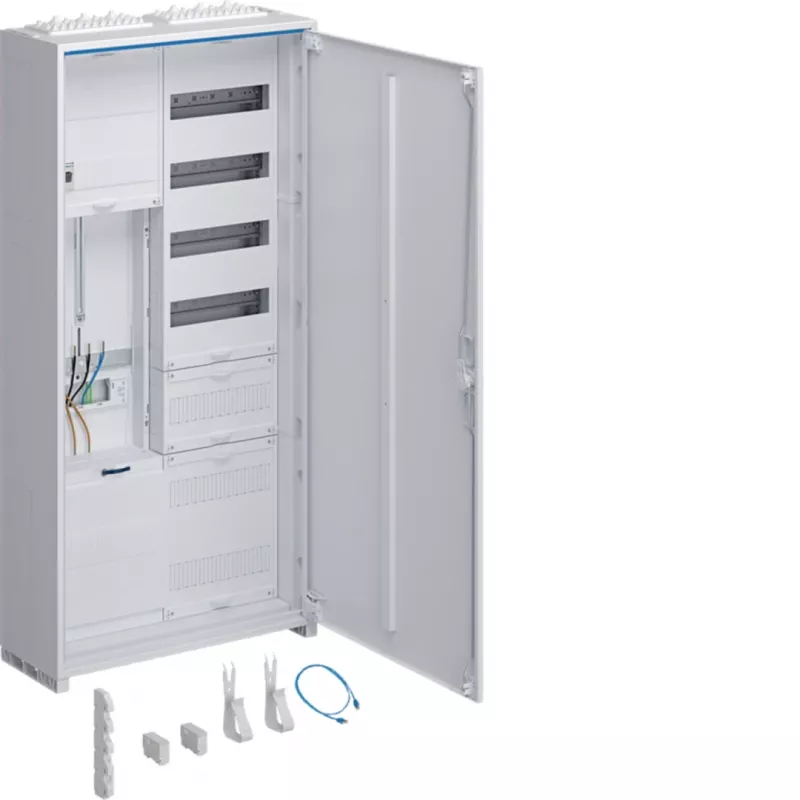

Hager universZ ZB322A15T meterkast 3-fase 1 meterpositie 1100x550x205mm

The Hager universZ ZB322A15T is a high-quality meter cabinet designed for residential and light commercial electrical installations. This complete cabinet offers a versatile solution for flush, surface, or partial flush mounting, providing flexibility for various installation requirements. With its robust sheet steel construction and IP31 protection, it ensures durability and safety for your electrical distribution needs.

Advantages

This meter cabinet features an integrated APZ space and reserve field, allowing for efficient organization of metering and distribution components. The 3-phase design supports up to 10 mm² main conductor cross-section, making it suitable for a wide range of applications. The hinged door provides easy access for maintenance and reading, while the compact dimensions (1100x550x205mm) optimize space utilization.

Suitable for

• Residential electrical installations requiring single-meter metering
• Light commercial buildings with 3-phase power supply
• New constructions and renovation projects needing a versatile meter cabinet

Key specifications

• Product Type: Meter Cabinet
• Series: universZ
• Number of Meter Positions: 1
• Phases: 3-phase
• APZ Space: Integrated
• Reserve Field: Integrated
• Max. Main Conductor Cross-section: 10 mm²
• Mounting Type: Universal (Flush, Surface, Partial Flush)
• Overall Height: 1100 mm
• Overall Width: 550 mm
• Overall Depth: 205 mm
• Enclosure Material: Sheet steel
• Protection Degree (IP): IP31
• Door Type: Hinged
• Number of Functional Fields: 3 (Meter, APZ, Reserve)

Recommendations

For optimal installation, ensure compliance with local electrical regulations. This cabinet is designed to accommodate standard metering equipment and distribution boards. Professional installation by a qualified electrician is recommended.
