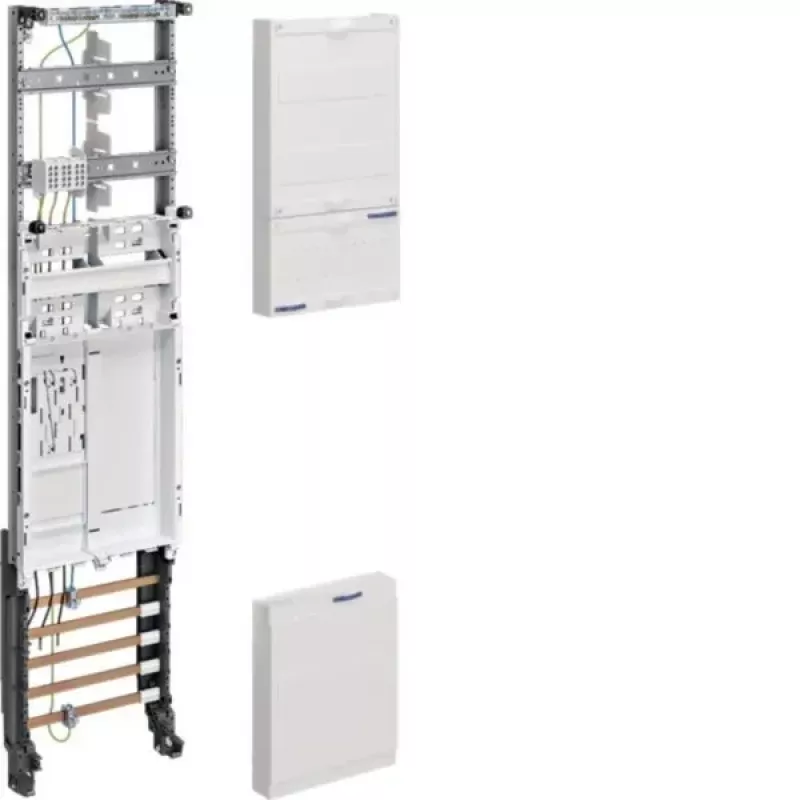

Hager universZ ZH3EL16 1-voudig meterveld montageplaat, BKE-I, 1050mm hoogte, 63A, eHZ-geschikt

Rated at 63 A with a 5-pole busbar system and screw terminals accepting up to 25 mm², the Hager universZ ZH3EL16 is a robust single-position meter mounting plate built for eHZ meters in residential and commercial installations. Its 1050 mm height and 300 mm APZ space provide ample room for modern smart-meter accessories and SLS switches, while the integrated RJ45 interface ensures seamless communication.

Overview

The Hager ZH3EL16 is part of the universZ series, a dedicated meter field solution for DIN VDE 0603-1 and VDE-AR-N 4100 compliant installations. This 1-field unit is designed for wall mounting and features a BKE-I (Befestigungs- und Kontaktiereinrichtung) mounting system, which guarantees safe and tool-free installation of electronic household meters (eHZ). The steel sheet and plastic construction offers durability, while the 250 mm width and 135 mm depth make it suitable for standard distribution enclosures.

What stands out

• BKE-I mounting system for quick and secure eHZ meter installation.
• Integrated RJ45 communication interface for smart meter connectivity.
• Generous 300 mm APZ space for additional components like SLS switches.
• 63 A rated current with 5-pole busbar for reliable power distribution.
• Compliant with VDE-AR-N 4100 and DIN VDE 0603-1 standards.

Technical details

• Product type: Meter mounting plate
• Series: Hager universZ
• Number of meter positions: 1
• Compatible meter type: eHZ (electronic household meter)
• Mounting system: BKE-I
• Field width: 1-field
• Overall height: 1050 mm
• Overall width: 250 mm
• Installation depth: 135 mm
• Rated current: 63 A
• Busbar system: 5-pole
• Main terminal type: Screw terminals (HLAK)
• Main terminal cross-section: up to 25 mm²
• Space for SLS switch: Yes
• APZ space height: 300 mm
• Communication interface: RJ45
• Material: Steel sheet, plastic
• Standards: VDE-AR-N 4100, DIN VDE 0603-1

Our verdict

The Hager ZH3EL16 is a reliable, future-proof choice for single-meter installations requiring eHZ compatibility and smart-meter readiness. Its robust build and compliance with German standards make it a solid investment for electricians and installers.
