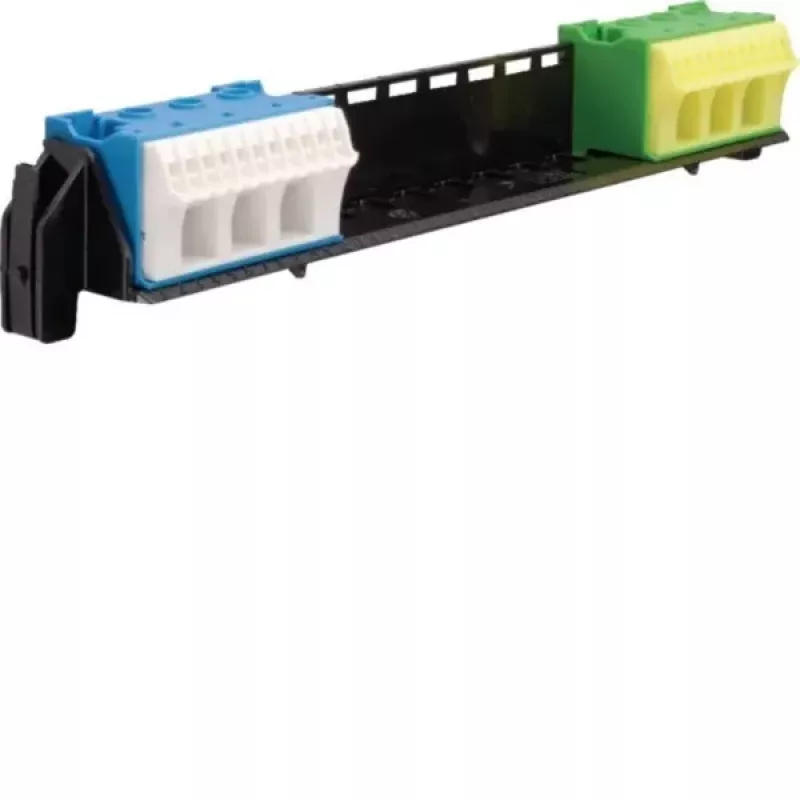

Hager Volta extra klemmenblok VZ461, 1-rijig, schroefaansluiting, grijs

Additional terminal block for Hager Volta small distribution boards, enabling auxiliary connections and main conductor termination with a single-row design. Its snap-on mounting simplifies installation without tools.

Advantages

The VZ461 expands connection capacity in compact Volta enclosures. Screw terminals accept rigid conductors up to 35 mm² and flexible up to 25 mm² for main lines, while branch conductors up to 16 mm² (rigid) or 10 mm² (flexible) cover typical auxiliary circuits. Rated up to 400 V AC and 125 A, it suits demanding residential and commercial applications.

Suitable for

• Hager Volta small distribution boards
• Auxiliary and main conductor connections
• Installations requiring additional terminal points

Key specifications

• Number of rows: 1
• Mounting: snap-on / clip-on
• Connection type: screw terminal
• Main conductor capacity rigid: 1 x 2.5 – 35 mm²
• Main conductor capacity flexible: 1 x 2.5 – 25 mm²
• Branch conductor capacity rigid: 1 x 2.5 – 16 mm²
• Branch conductor capacity flexible: 1 x 2.5 – 10 mm²
• Rated voltage: up to 400 V AC
• Rated current: up to 125 A
• Housing material: plastic
• Terminal material: brass / galvanized steel
• Colour: grey

Recommendations

Verify compatibility with your specific Volta distribution board model before installation. Follow local electrical codes and use appropriate torque settings for screw terminals.
