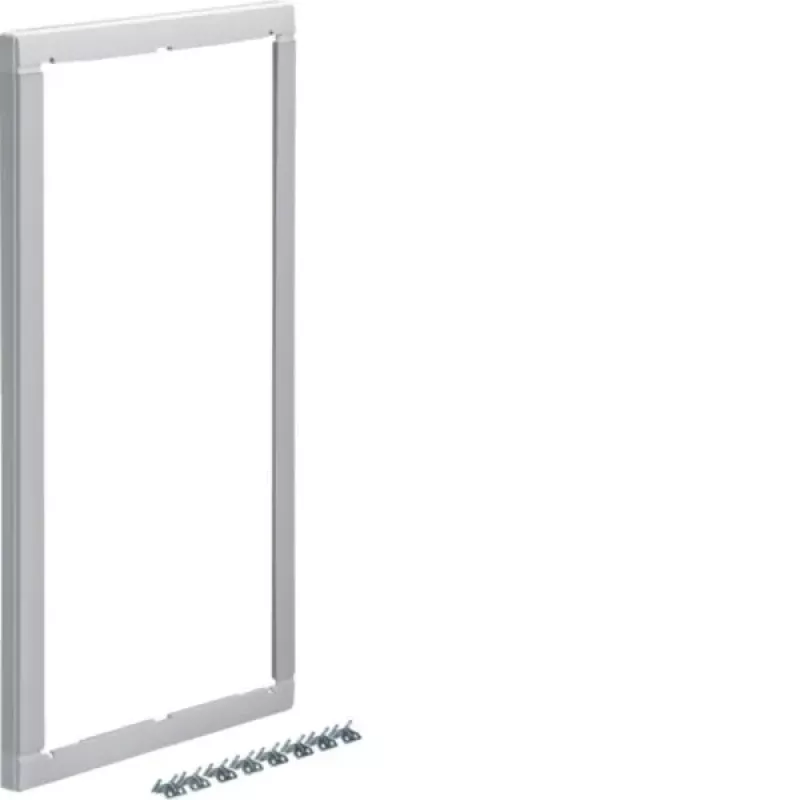

Hager Volta uitbreidingsframe maat 3 VZ113N

Extend the installation depth of your Hager Volta flush-mounted distribution board by 30 mm with this white plastic extension frame. Designed for size 3 enclosures, it provides additional space for wiring and components while maintaining a clean, integrated appearance.

Overview

The Hager VZ113N extension frame is a genuine accessory for Volta series distribution boards. It is halogen-free and UV-resistant, ensuring durability and safety in residential and commercial installations. The frame is suitable for flush-mounted enclosures and offers an added depth of 30 mm.

What stands out

• Adds 30 mm installation depth to Volta flush-mounted distribution boards
• Halogen-free plastic construction with UV resistance
• Compatible with size 3 enclosures (3 rows)
• Maintains IP30 protection class when used with the enclosure

Technical details

• Product type: Extension frame
• Series: Volta
• Size: 3
• Compatible number of rows: 3
• Mounting type: Flush-mounted
• Material: Plastic
• Colour: White
• Added installation depth: 30 mm
• Outer width: 305 mm
• Outer height: 540 mm
• Halogen-free: Yes
• Glow wire test temperature: 650 °C
• UV resistance: Yes

Our verdict

A reliable extension frame that integrates seamlessly with Hager Volta distribution boards, providing extra depth without compromising on safety or aesthetics.
