HAGER WAD8310WM opbouwbehuizing 3-voudig, A.8 design, reinwit

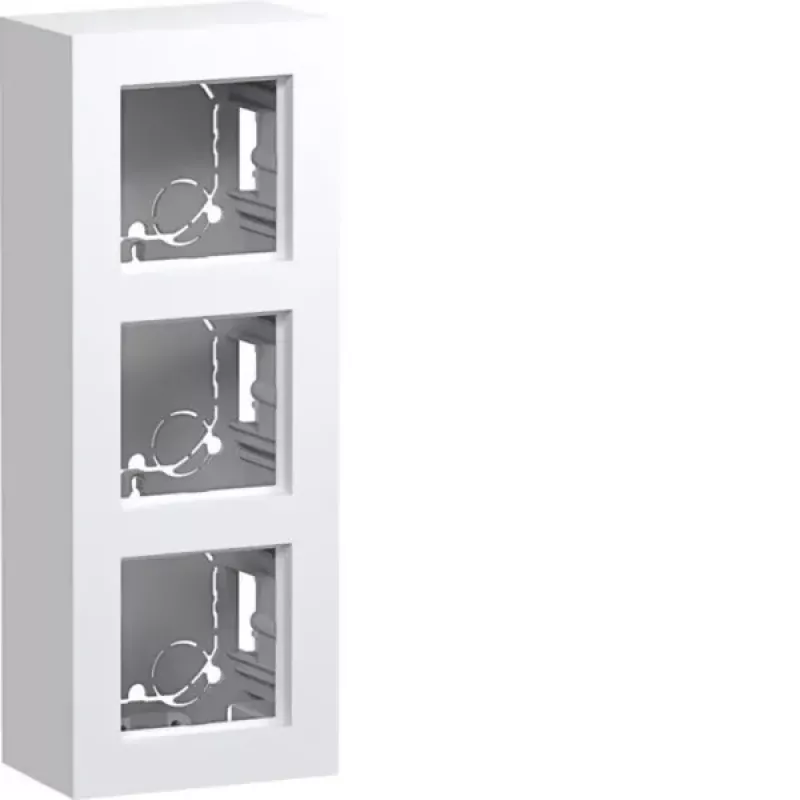

When installing electrical switches or sockets on walls without flush-mount boxes, you need a housing that provides a clean, secure base. The HAGER WAD8310WM is a surface-mounted 3-gang housing from the A.8 design line, finished in pure white (RAL 9010). It offers a simple solution for adding or replacing electrical points in dry indoor spaces.

Who is it for

Electricians and DIY enthusiasts working on surface-mounted electrical installations in homes, offices, or commercial buildings. It suits projects where flush mounting is impractical, such as solid concrete walls or listed buildings.

Main features

• 3-gang surface-mounted housing for Hager A.8 series inserts
• Pure white (RAL 9010) glossy finish
• Made from halogen-free thermoplastic
• Four cable entry points: two top, two bottom
• Compact design for discreet wall mounting

Specifications

• Product type: Surface-mounted housing
• Number of gangs: 3
• Design line: Hager A.8
• Colour: Pure white (RAL 9010)
• Mounting type: Surface-mounted (AP)
• Material: Thermoplastic
• Halogen-free: Yes
• Glow wire test temperature: 850 °C
• Operating temperature range: -5 to 40 °C
• Storage temperature range: -25 to 70 °C
• Cable entry points: 4 (2 top, 2 bottom)
• Surface finish: Glossy
• Application environment: Indoor, dry rooms

Tips

Pair with Hager A.8 series inserts such as switches, sockets, or push-buttons. Ensure the wall surface is flat and clean before mounting. Use appropriate cable glands or grommets at the entry points to maintain protection.
