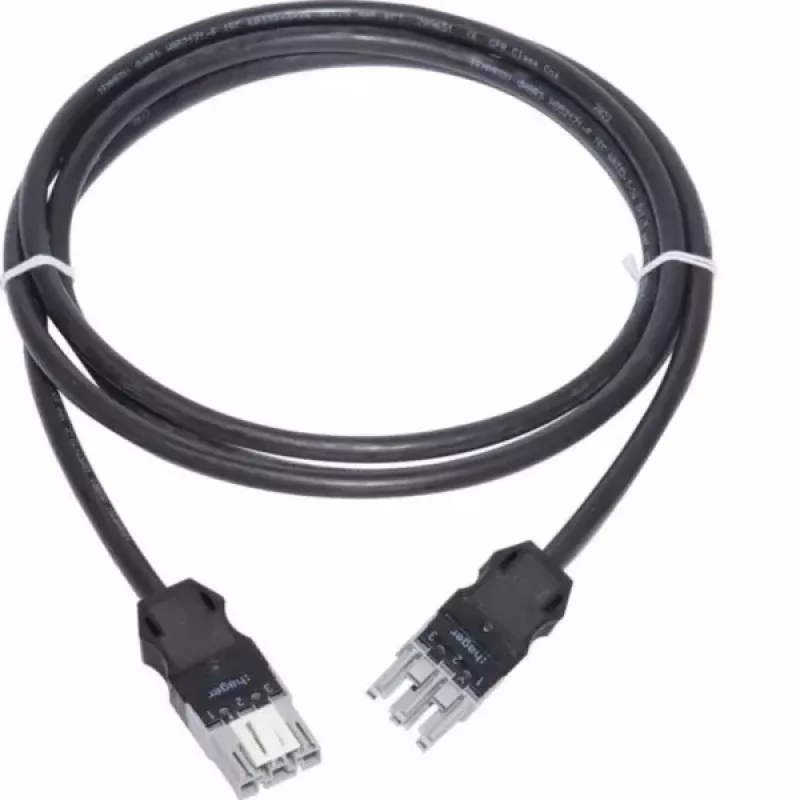

Hager WAGO Winsta Code B verbindingskabel 3x1,5mm² halogeenvrij 2,5m GKWAD93025

This Hager connection cable delivers a 16 A rated current at 250 V through a 3-conductor 1.5 mm² halogen-free cable, ensuring safe and efficient power distribution in electrical installations.

Overview

The Hager GKWAD93025 is a pre-assembled connection cable featuring WAGO Winsta connectors with Code B coding. It is designed for quick, tool-free connections in lighting systems and power distribution applications. The cable is halogen-free, low-smoke, and flame retardant, making it suitable for use in public buildings and other sensitive environments.

What stands out

• WAGO Winsta plug-and-socket system with Code B coding prevents mismating.
• Halogen-free cable jacket reduces toxic gas emissions in case of fire.
• 3-pole configuration (L, N, PE) with 1.5 mm² copper conductors supports up to 16 A.
• 2.5 m length provides flexibility in installation layouts.

Technical details

• Cable type: H05Z1Z1-F
• Number of conductors: 3
• Conductor cross-section: 1.5 mm²
• Rated voltage: 250 V
• Rated current: 16 A
• Connector system: WAGO Winsta
• Connector coding: Code B
• Connector configuration: Plug (male) to socket (female)
• Cable colour: Black
• Halogen-free: Yes
• Operating temperature range: -5°C to +70°C
• Protection class (mated): IP20

Our verdict

A reliable, halogen-free connection cable with WAGO Winsta connectors, ideal for professional electrical installations where safety and quick connection are priorities.
