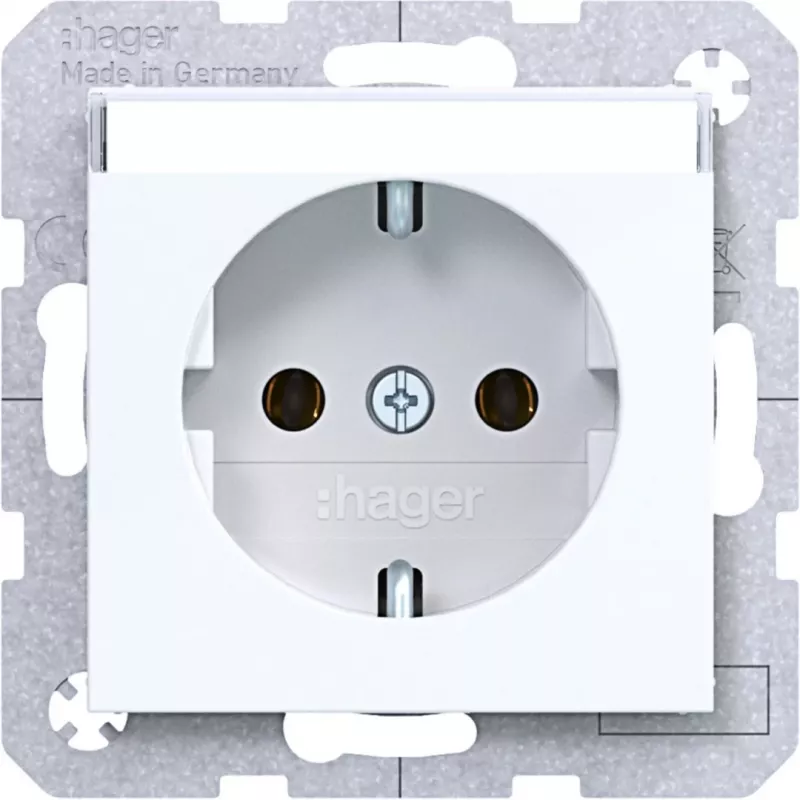

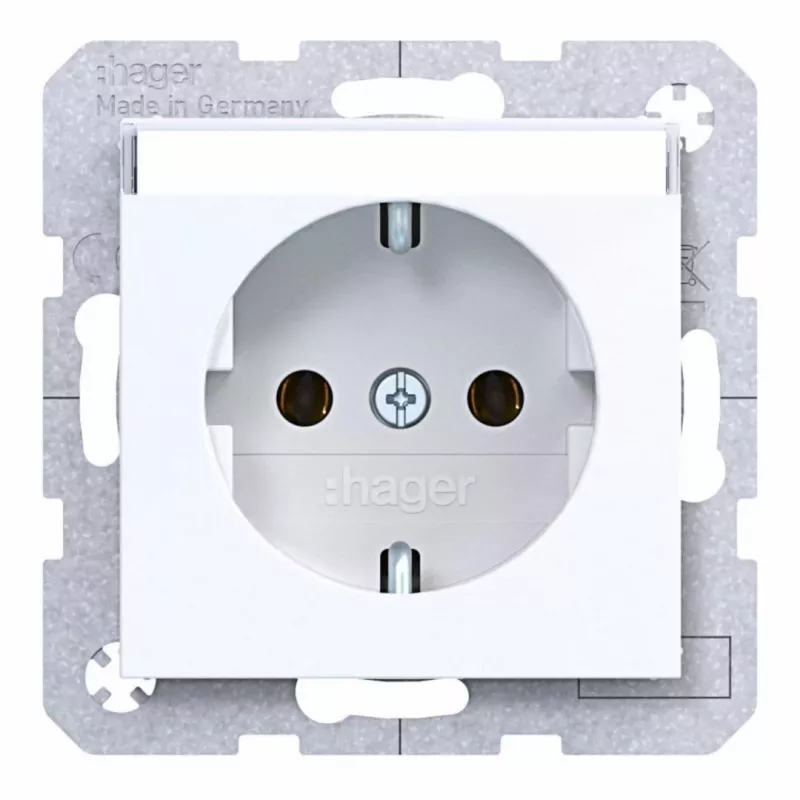

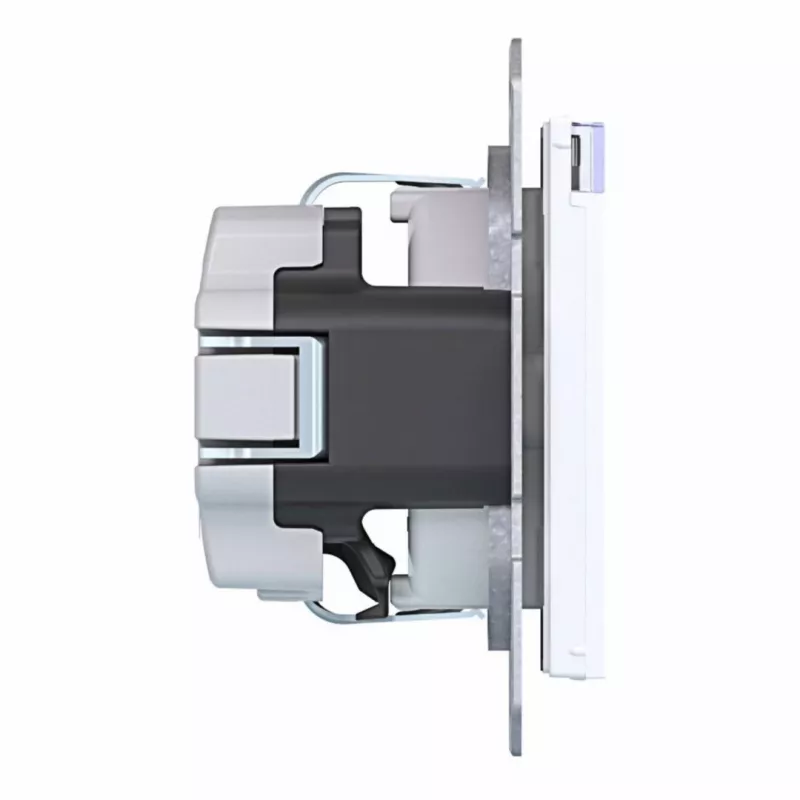

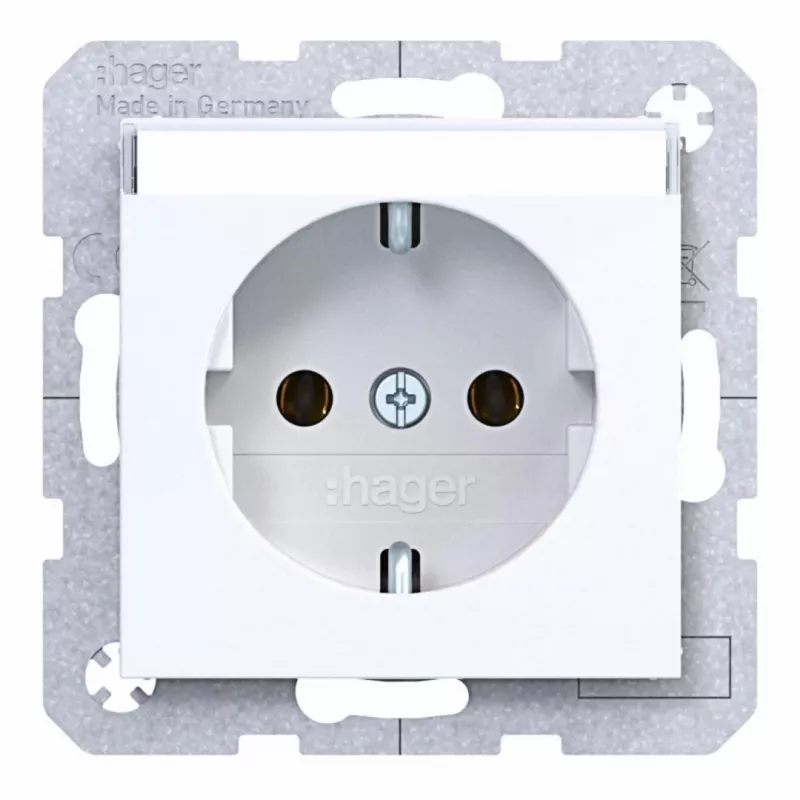

Hager WAS1101WG stopcontact Ax/Cx lichtwit glanzend

The Hager WAS1101WG is a high-quality flush-mounted Schuko socket outlet from the Ax/Cx series, designed for reliable and safe power distribution in dry indoor environments. Its light white glossy finish ensures a modern and clean appearance, seamlessly integrating with compatible cover frames.

Advantages

Integrated child protection (shutter) provides enhanced safety, especially in households with children. The screw terminals allow for secure and easy connection of rigid conductors up to 2.5 mm². Halogen-free materials contribute to a healthier indoor climate and reduced smoke emission in case of fire.

Suitable for

• Residential and commercial dry rooms
• Flush-mounted installations with compatible cover frames
• Standard 250 V AC, 16 A applications

Key specifications

• Socket Type: Schuko (Type F)
• Number of Outlets: 1-gang
• Colour: Light White
• Finish: Glossy
• Material: Thermoplastic
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Mounting Type: Flush-mounted
• Connection Type: Screw Terminals
• Degree of Protection (IP): IP20
• Series/Design Line: Ax/Cx
• Integrated Child Protection: Yes (Shutter)
• Halogen-free: Yes
• Terminal Capacity: Up to 2.5 mm² (rigid conductors)
• Mounting Depth: Approx. 32 mm
• Orientation: Vertical/Horizontal

Recommendations

For a complete installation, pair this socket with a compatible Hager cover frame (not included). Ensure the mounting depth of at least 32 mm is available in the flush-mounted box.
