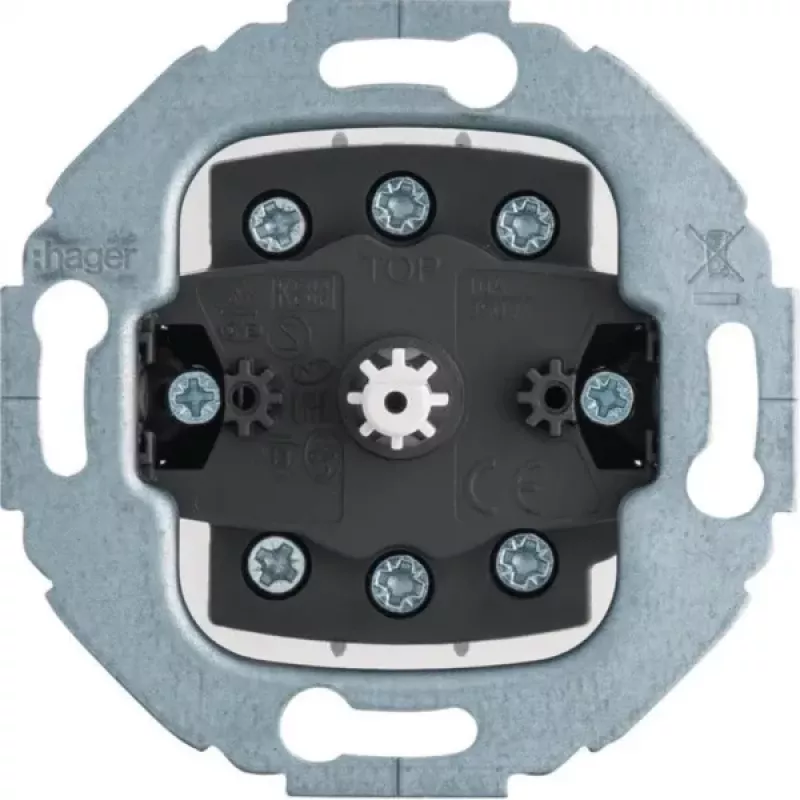

Hager WDE383803 groepsdraaischakelaar 2-polig inbouw gescheiden ingangsklemmen 0-stand

The Hager WDE383803 is a high-quality group rotary switch designed for professional lighting control and group switching applications. This 2-pole flush-mounted switch features separate input terminals and a 0-position, providing reliable and flexible operation. Manufactured by Hager, a trusted brand in electrical installations, this switch is part of the WDE series and is compatible with Hager cover plates such as Kallysto and Systo.

Advantages

This rotary switch offers precise control with three switching positions (0-I-II), allowing for easy group switching of lighting circuits. The flush-mounted design ensures a clean, integrated look in any installation. Separate input terminals simplify wiring and enhance safety. With a rated voltage of 250 V AC and a rated current of 10 A, it is suitable for a wide range of residential and commercial applications.

Suitable for

• Group switching of lighting circuits
• Control of multiple light sources from one point
• Flush-mounted installations in walls or panels
• Use with Hager cover plates for a uniform appearance

Key specifications

• Product Type: Rotary Switch
• Number of Poles: 2-pole
• Mounting Type: Flush-mounted (UP)
• Switching Function: With 0-Position
• Terminal Type: Separate Input Terminals
• Rated Voltage: 250 V AC
• Rated Current: 10 A
• Connection Type: Screw Terminals
• Number of Switching Positions: 3 (0-I-II)
• Actuation Type: Rotary
• Material: Thermoplastic
• IP Protection Class: IP20 (for mechanism)
• Series: Hager WDE
• Compatibility: Compatible with Hager cover plates (e.g., Kallysto, Systo)
• Installation Depth: Approx. 32 mm

Recommendations

For optimal performance and aesthetics, pair this switch with a matching Hager cover plate from the Kallysto or Systo series. Ensure proper installation by a qualified electrician.
