Hager WDE387503 2-voudige draaischakelaar 10A 250V AC inbouw polarwit

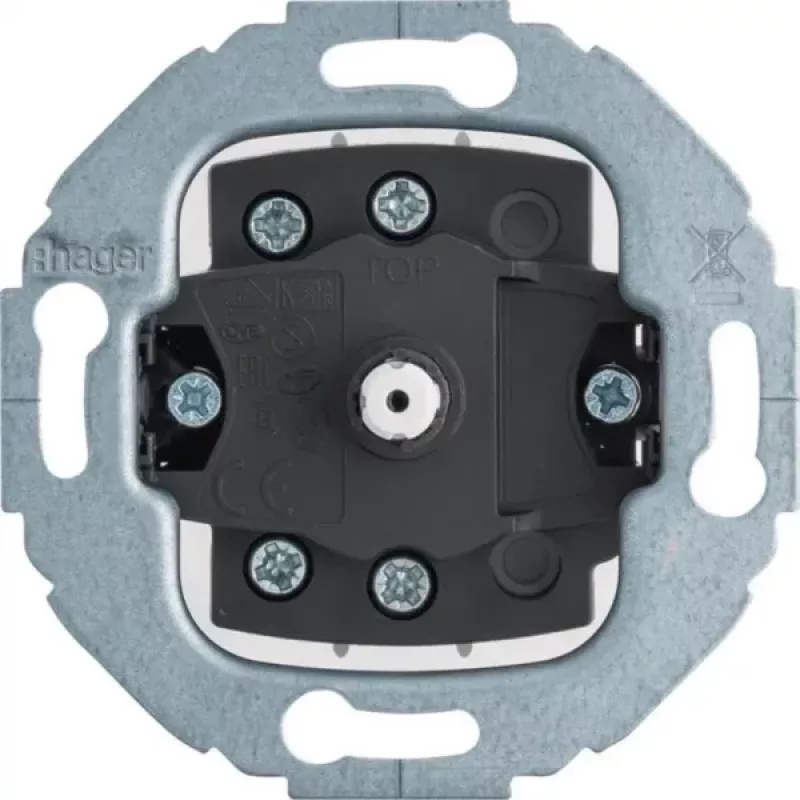

This Hager WDE387503 is a 2-gang rotary series switch rated for 10 A at 250 V AC, built for flush-mounted installation in standard wall boxes. It offers four switching positions (0-1-2-3) and uses screw terminals for secure wiring with rigid conductors from 1.5 to 2.5 mm². The switch body is made of halogen-free thermoplastic in polar white, matching the Hager Kallysto design line.

Overview

The WDE387503 belongs to the Hager Kallysto product family and is intended for use with a compatible cover plate and frame, which are not included. Its compact installation depth of approximately 32 mm allows it to fit in most standard flush-mounted boxes. The switch is rated IP20 and operates within a temperature range of -5 to +40 °C.

What stands out

• 2-gang rotary series switch with four positions
• Rated current 10 A, voltage 250 V AC
• Flush-mounted design with screw terminals
• Halogen-free thermoplastic housing in polar white
• Part of the Hager Kallysto range

Technical details

• Switch type: Rotary series switch
• Number of gangs: 2
• Rated current: 10 A
• Rated voltage: 250 V AC
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Number of switching positions: 4 (0-1-2-3)
• Material: Thermoplastic
• Colour: Polar white
• Protection class: IP20
• Terminal capacity: 1.5 - 2.5 mm² (rigid conductor)
• Operating temperature range: -5 to +40 °C
• Installation depth: approx. 32 mm
• Halogen-free: Yes
• Compatibility: Requires cover plate and frame (not included)

Our verdict

A reliable rotary series switch for flush-mounted installations, offering clear switching positions and a clean polar white finish that blends with the Kallysto design line.
