Hager WDE387603 inbouw wisselschakelaar-inzet, 10 AX, 250 V, wit

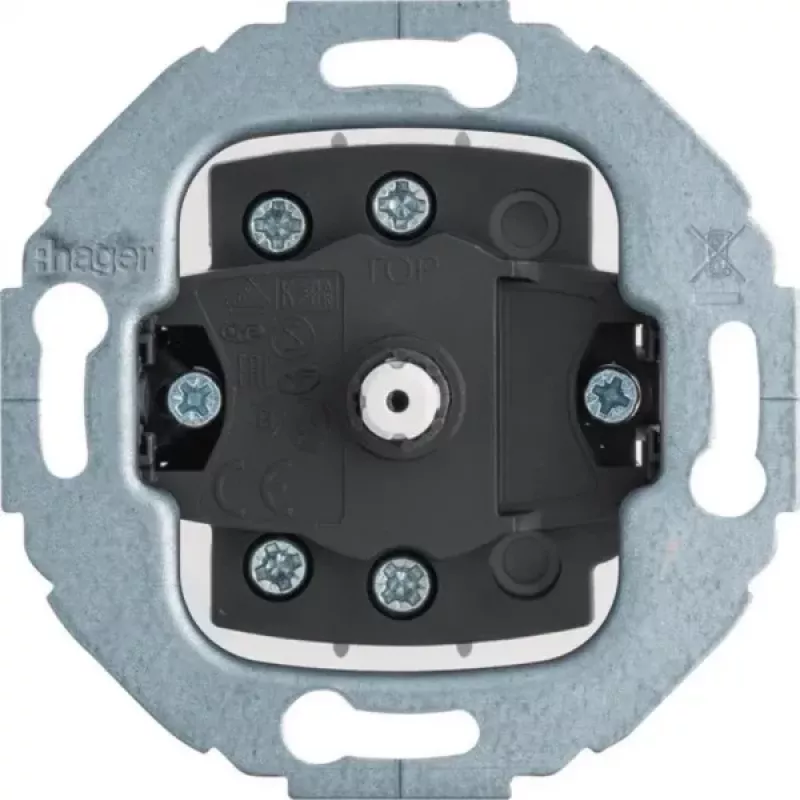

This flush-mounted rotary switch insert from Hager provides reliable on/off and changeover switching for lighting and other electrical circuits. With a rated current of 10 AX and 250 V AC, it handles a wide range of loads, including fluorescent and LED lighting. The robust thermoplastic housing is halogen-free and features screw terminals for secure wiring of rigid conductors from 1.5 to 2.5 mm². Designed for use with Merten System M, System Design, System Fläche, System Glas, System Nature, System Basis, and Merten 1930 series, this insert requires a compatible central plate (not included) to complete the installation. It is VDE certified and suitable for indoor use with an IP20 rating.

Advantages

The rotary mechanism offers precise switching with a satisfying tactile feel. Its compact design fits standard flush-mounted boxes, and the screw terminals ensure a durable, vibration-resistant connection. The halogen-free material contributes to a healthier indoor environment and easier recycling.

Suitable for

• Residential and commercial lighting control
• Two-way switching applications (staircases, corridors)
• Retrofit projects using Merten design series
• Installations requiring VDE-certified components

Key specifications

• Switch type: Rotary switch, changeover (two-way)
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Mounting: Flush-mounted (Unterputz)
• Connection: Screw terminals, 1.5–2.5 mm² rigid
• Material: Thermoplastic, halogen-free
• Protection class: IP20 (insert only)
• Compatibility: Merten System M, System Design, System Fläche, System Glas, System Nature, System Basis, Merten 1930
• Certification: VDE
• Colour: White/neutral

Recommendations

Pair this insert with a matching central plate from the desired Merten design series for a complete, aesthetically pleasing installation. Ensure the circuit is de-energized before wiring and use only rigid conductors within the specified range.
