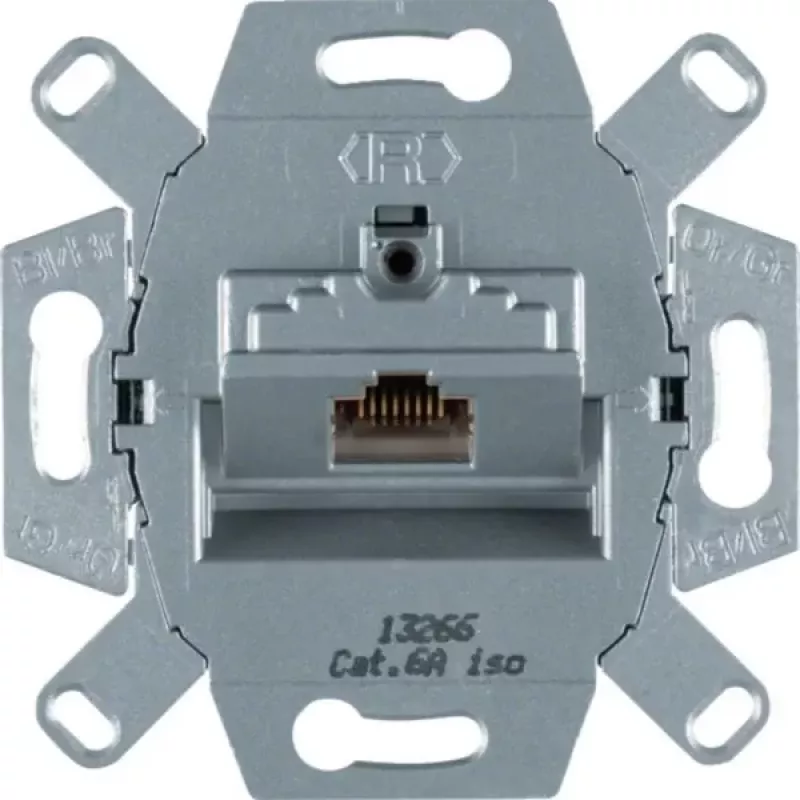

Hager WDF41076 UAE-stopcontact 8-polig afgeschermde module-inzet inbouw

The Hager WDF41076 is a high-quality UAE (Universal Anschluss Einheit) socket designed for flush-mounted installation in modular systems. This 8-pole shielded module insert ensures reliable data transmission for Ethernet and other network applications, meeting Cat.5e standards with a transmission frequency of up to 100 MHz. Ideal for use in Hager Systo and Kallysto ranges, it provides a professional and secure connection for your data network.

Advantages

Shielded design minimizes electromagnetic interference, ensuring stable data transfer. The LSA-Plus (IDC) termination allows for quick and tool-free installation. Gold-plated contacts guarantee long-term reliability and corrosion resistance. Halogen-free materials contribute to safety and environmental compliance.

Suitable for

• Ethernet and data network installations
• Flush-mounted modular systems (e.g., Hager Systo, Kallysto)
• Professional and residential network infrastructure

Key specifications

• Socket Type: UAE/RJ45
• Number of Contacts: 8-pole (8P8C)
• Shielding: Yes
• Category: Cat.5e
• Mounting Type: Flush-mounted (UP)
• Termination Type: LSA-Plus (IDC)
• Wiring Standard: TIA/EIA 568A/B
• Transmission Frequency: Up to 100 MHz
• Housing Material: Plastic
• Contact Material: Gold-plated
• Number of Ports: 1
• IP Rating: IP20
• Halogen-free: Yes

Recommendations

For optimal performance, use with Hager modular frames and faceplates. Ensure proper cable termination following TIA/EIA 568A/B standards.
