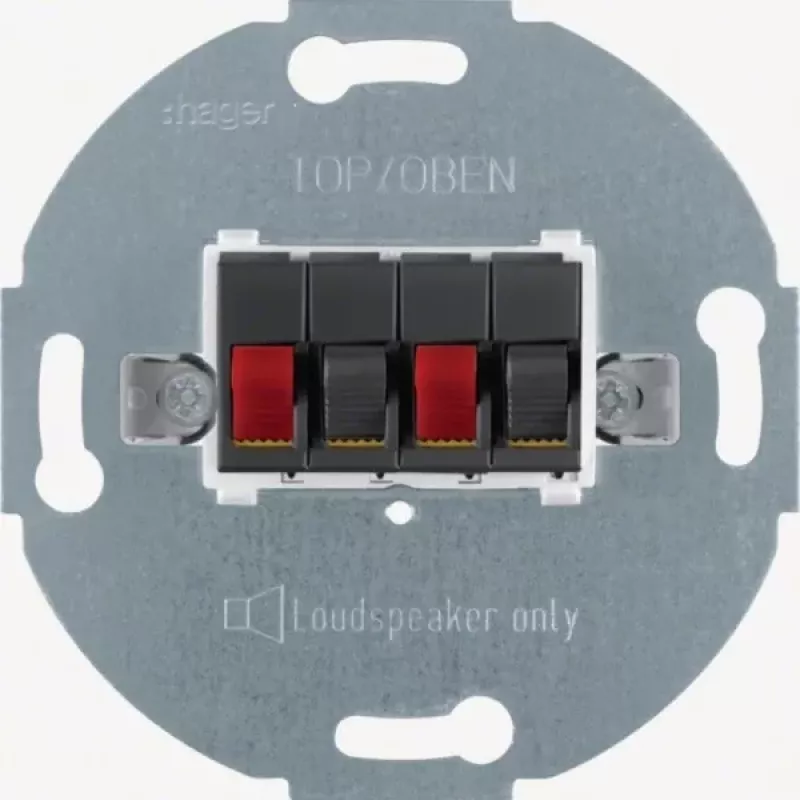

Hager WDF4800AT2 stereo-luidspreker-aansluitmodule, antraciet mat, module-inzet

The Hager WDF4800AT2 is a high-quality stereo speaker connection module designed for flush-mounted installations. This module insert allows for a clean and professional connection of stereo speakers, featuring screw terminals for secure wiring. The anthracite matt finish provides a modern and elegant look, compatible with Hager w1 frames and standard flush-mounted boxes.

Advantages

Reliable screw terminal connections ensure long-lasting performance. The compact module insert design saves space and integrates seamlessly into existing wall systems. Halogen-free materials contribute to safety and environmental friendliness.

Suitable for

• Stereo speaker installations in residential and commercial buildings
• Use with Hager w1 frames and standard flush-mounted boxes
• Applications requiring a discreet and professional speaker connection point

Key specifications

• Product Type: Speaker Connection Module
• Colour: Anthracite Matt
• Function: Stereo Speaker Connection
• Connection Type: Screw Terminals
• Number of Channels: 2 (Stereo)
• Number of Connections: 4 (2x Left, 2x Right)
• Mounting Type: Module Insert for Flush-Mounted Systems
• Material: Thermoplastic
• Series: Hager w1
• Design: Central Plate with 2x2 Screw Terminals
• Compatibility: Compatible with Hager w1 frames and standard flush-mounted boxes
• Protection Class: IP20
• Operating Temperature: -5 to +40 °C
• Terminal Capacity: Up to 2.5 mm²
• Installation Depth: Approx. 20 mm
• Halogen-Free: Yes
• Surface Finish: Matt

Recommendations

For optimal performance, use with Hager w1 frames and ensure proper installation by a qualified electrician. This module is ideal for new constructions or renovations where a clean, integrated speaker connection is desired.
