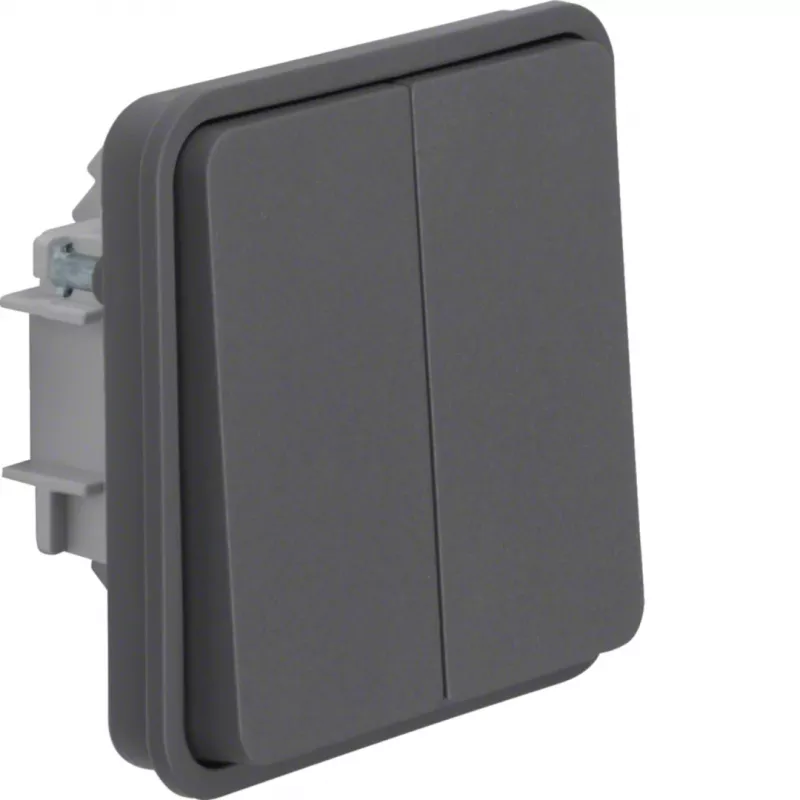

HAGER WNA047 dubbele taster, 2-voudig, 2 NO, wip, opbouw, polarwit

Controlling two independent circuits from a single surface-mounted point can be a wiring challenge. The HAGER WNA047 double push-button switch solves this with a compact 2-gang rocker design that provides two normally open contacts, allowing you to manage two separate loads without additional wall boxes.

Who is it for

This switch is intended for electricians and installers working on residential or commercial projects where a reliable, surface-mounted momentary switch is required. It suits applications such as controlling lighting, shutters, or signal circuits in dry indoor environments.

Main features

• Double push-button function with two independent normally open contacts
• 2-gang rocker design in polar white, part of the System W.1 series
• Surface-mounted installation with screw terminals for secure wiring
• Rated for 250 V AC and 10 A, suitable for standard lighting loads
• Thermoplastic, halogen-free housing for durability

Specifications

• Product type: Double push-button switch
• Operation type: Momentary (push-button)
• Number of gangs: 2
• Contact configuration: 2 x NO (normally open)
• Switch design: Rocker
• Mounting type: Surface-mounted
• Series: System W.1
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm² (solid/stranded)
• Material: Thermoplastic, halogen-free
• Colour: Polar white
• IP protection class: IP20
• Operating temperature: -5 to +40 °C
• Storage temperature: -25 to +55 °C
• Relative humidity: 5% to 95% (non-condensing)
• Standards: DIN EN 60669-1

Tips

For a clean finish, use matching surface-mount boxes and cable glands from the W.1 series. Ensure wiring is done with the power off and conductors are properly stripped to fit the screw terminals. This switch is not suitable for wet or dusty environments due to its IP20 rating.
