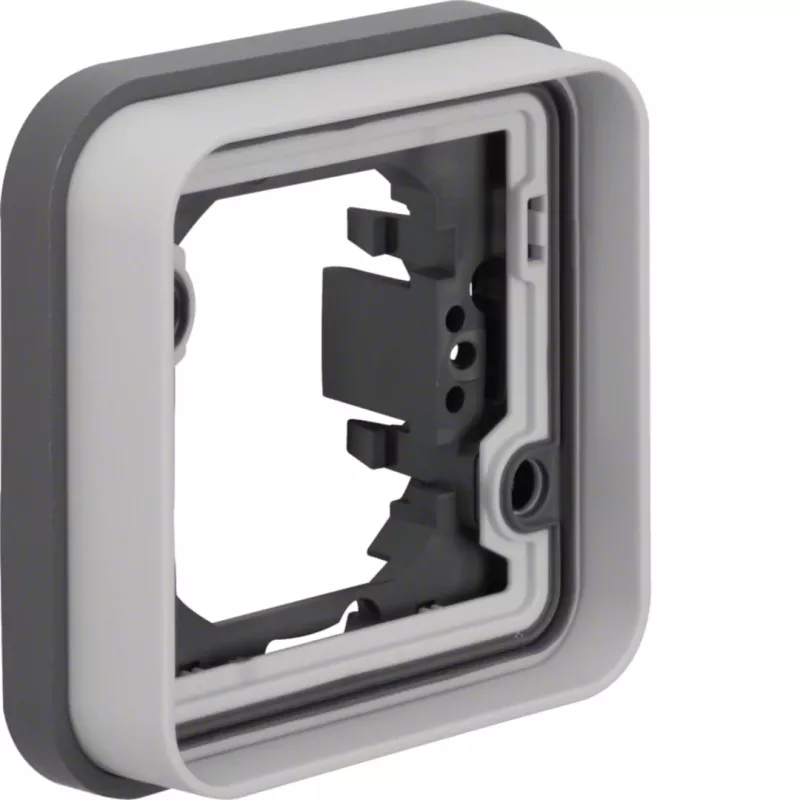

Hager WNA401 1-voudig inbouwframe, IP55, grijs

The Hager WNA401 is a 1-gang cover frame from the W.1 series, designed for flush-mounted installation in demanding environments. Its IP55 protection makes it suitable for outdoor use, wet rooms, and industrial settings where dust and water resistance are essential. The grey thermoplastic construction is halogen-free and UV-resistant, ensuring long-term durability even in direct sunlight. With impact resistance rated at IK07, this frame withstands mechanical stress, providing reliable protection for switches, sockets, and push-buttons of the W.1 range.

Highlights

• IP55 protection against dust and water jets
• Halogen-free and UV-resistant thermoplastic
• Impact resistance IK07 for robust use
• Compatible with W.1 series inserts

In daily use

Install the frame over a flush-mounted box and snap in a compatible W.1 insert. The matt grey finish blends with industrial and outdoor aesthetics, while the compact 85 x 85 mm footprint fits standard European boxes. The frame's depth of 11 mm allows for a low-profile installation, and its operating temperature range from -25 to +45 °C ensures functionality in extreme climates.

Full specifications

• Product Type: Cover Frame
• Number of Gangs: 1
• Mounting Method: Flush-mounted
• Series: Hager W.1
• IP Protection Class: IP55
• Colour: Grey
• Material: Thermoplastic
• Surface Finish: Matt
• Halogen-free: Yes
• UV-resistant: Yes
• Impact Resistance: IK07
• Length: 85 mm
• Width: 85 mm
• Depth: 11 mm
• Operating Temperature Range: -25 to +45 °C
• Storage Temperature Range: -25 to +60 °C

Final note

The Hager WNA401 combines weather resistance and mechanical strength in a compact, halogen-free design, making it a reliable choice for outdoor and industrial installations.
