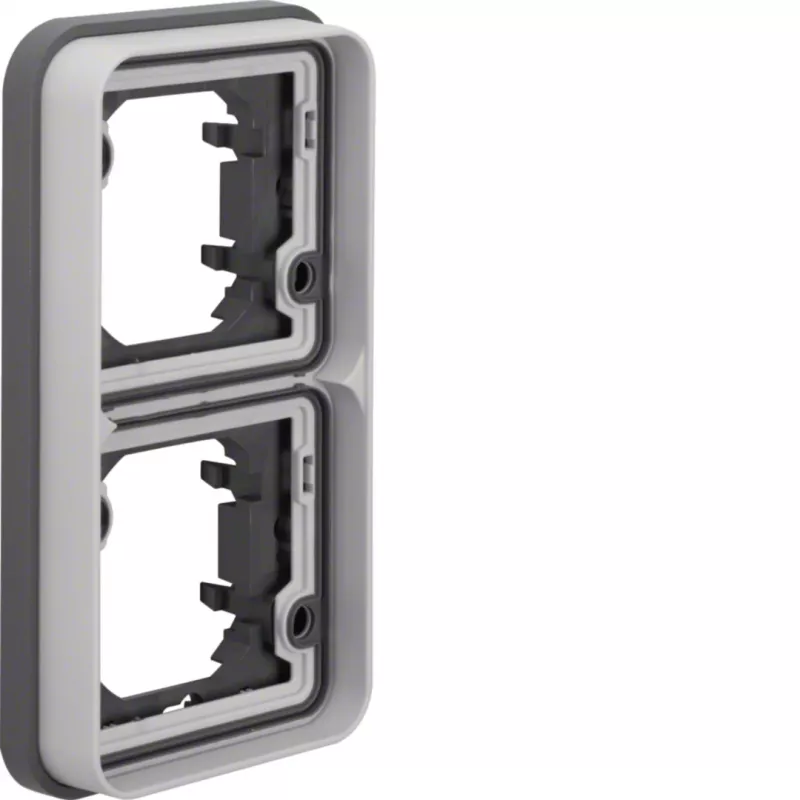

Hager WNA408 raam 2-voudig verticaal inbouw IP55 grijs

The Hager WNA408 is a high-quality 2-gang frame from the W.1 series, designed for vertical flush-mounted installation. Manufactured from durable thermoplastic (PC), this frame offers IP55 protection, making it suitable for both indoor and protected outdoor areas. Its sleek grey matt finish and robust construction ensure long-lasting performance and a modern appearance.

Advantages

IP55 protection against dust and water jets, UV-resistant and halogen-free material, impact resistance IK07, and compatibility with Hager W.1 series inserts.

Suitable for

• Vertical flush-mounted installations in residential and commercial buildings
• Indoor and protected outdoor areas requiring IP55 protection
• Use with Hager W.1 series switches, sockets, and push-buttons

Key specifications

• Product Type: Frame / Cover Plate
• Number of Gangs: 2-gang
• Mounting Direction: Vertical
• Mounting Type: Flush-mounted (UP)
• IP Protection Rating: IP55
• Material: Thermoplastic (PC)
• Colour: Grey
• Series: Hager W.1
• Halogen-free: Yes
• UV-resistant: Yes
• Impact Resistance: IK07
• Surface Finish: Matt
• Operating Temperature Range: -25 to +45 °C
• Storage Temperature Range: -25 to +70 °C

Recommendations

For optimal performance, pair this frame with Hager W.1 series inserts. Ensure proper sealing for outdoor use to maintain IP55 protection.
