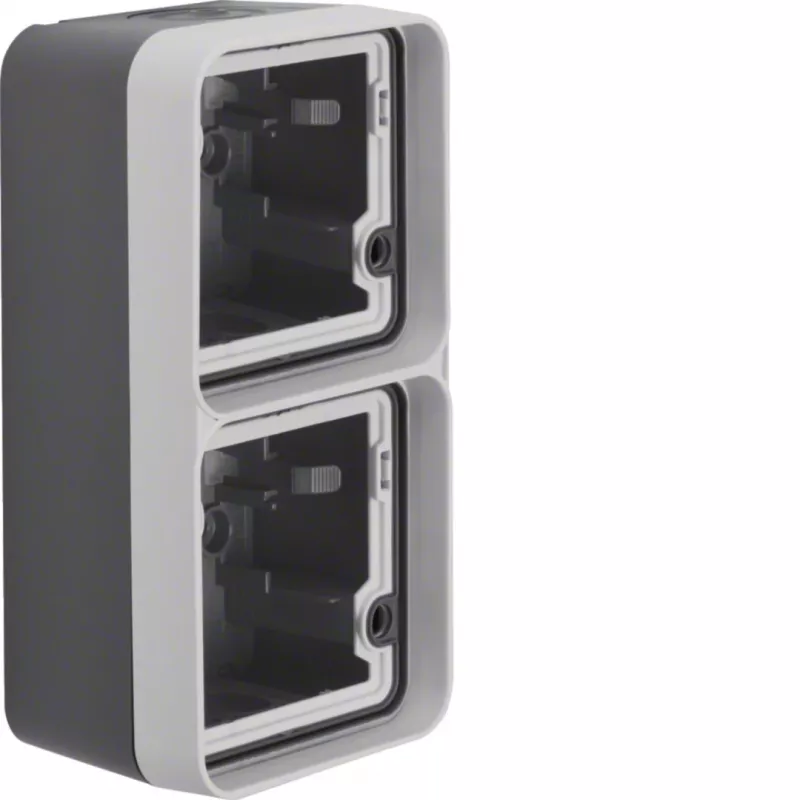

Hager WNA676 opbouw 2-voudig verticaal basisbehuizing met frame en kabelinvoer, polarwit

The Hager WNA676 is a surface-mounted base enclosure for two modular devices from the W.1 series, arranged vertically. Its integrated frame and cable entry simplify installation, while the flat thermoplastic design in polar white blends into modern interiors.

Highlights

• 2-gang vertical configuration for switches, sockets, or push-buttons
• Integrated cable entry and included frame for a clean finish
• Halogen-free thermoplastic housing in polar white (RAL 9010)
• Surface mounting with screw fastening for secure installation

In daily use

This base enclosure provides a solid foundation for modular W.1 devices in residential or commercial settings. Its compact depth of 40 mm keeps protrusion minimal, while the flat design complements contemporary décor. The enclosure is suitable for indoor use with an operating temperature range of -5 to +40 °C.

Full specifications

• Mounting type: Surface-mounted
• Number of gangs: 2
• Installation orientation: Vertical
• Component type: Base enclosure with frame
• Cable entry: Integrated
• Product series: Hager W.1
• Material: Thermoplastic
• Colour: Polar White (RAL 9010)
• Halogen-free: Yes
• Degree of protection: IP20
• Impact resistance: IK07
• Operating temperature range: -5 to +40 °C
• Storage temperature range: -25 to +70 °C
• Suitable for: Modular devices (switches, sockets, push-buttons) from W.1 series
• Design feature: Flat design
• Fastening method: Screw mounting
• Number of modules: 2
• Enclosure depth: 40 mm

Final note

A practical choice for surface-mounted installations where a neat, integrated look is required.
