Hager WNC006 wisselschakelaar opbouw IP55 grijs met beschriftingsveld W.1

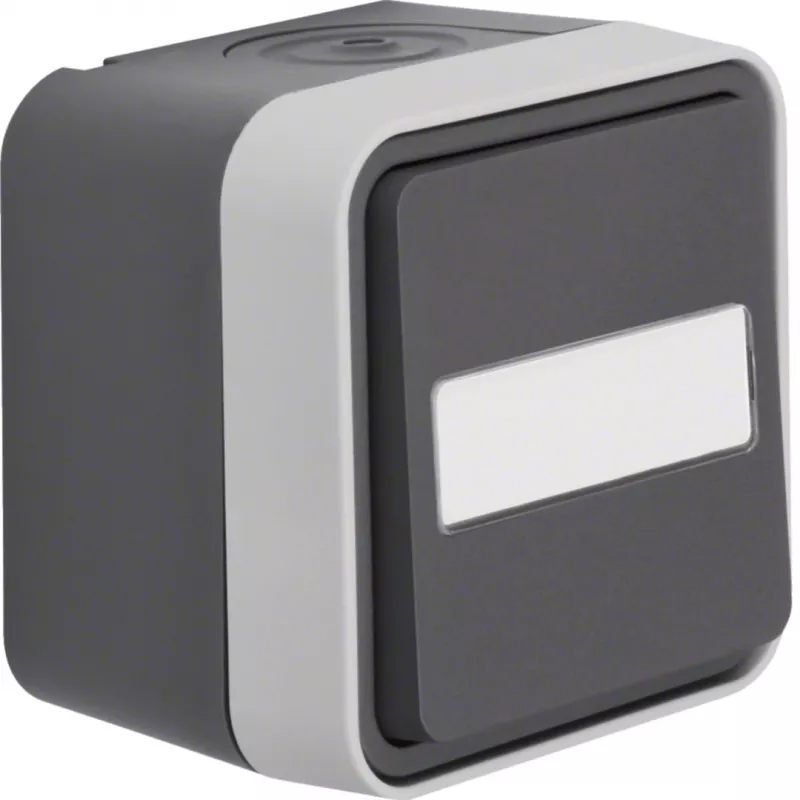

The Hager WNC006 is a robust two-way switch (Wechselschalter) designed for surface mounting, part of the Hager W.1 series. With an IP55 rating, it is suitable for outdoor and industrial environments where protection against dust and water jets is required. The switch features a grey thermoplastic housing, a labeling field for easy identification, and screw terminals for secure wiring.

Advantages

High ingress protection (IP55) ensures reliable operation in harsh conditions. The integrated labeling field simplifies circuit identification, reducing installation and maintenance time. The surface-mounted design allows for quick and easy installation without the need for recessed boxes.

Suitable for

• Outdoor lighting control
• Industrial and commercial buildings
• Garages, workshops, and warehouses
• Garden and landscape installations

Key specifications

• Product Type: Two-way switch (SPDT)
• Mounting: Surface-mounted (AP)
• Series: Hager W.1
• IP Rating: IP55
• Colour: Grey
• Rated Voltage: 250 V AC
• Rated Current: 10 A
• Number of Rockers: 1
• Connection: Screw terminals
• Material: Thermoplastic
• With labeling field: Yes
• Operating temperature: -25 to +45 °C
• Impact resistance: IK07
• Halogen-free: Yes
• Standards: VDE, CE

Recommendations

For optimal performance, use with Hager W.1 series accessories. Ensure proper sealing of cable entries to maintain IP55 protection. Suitable for use with cables up to 2.5 mm².
