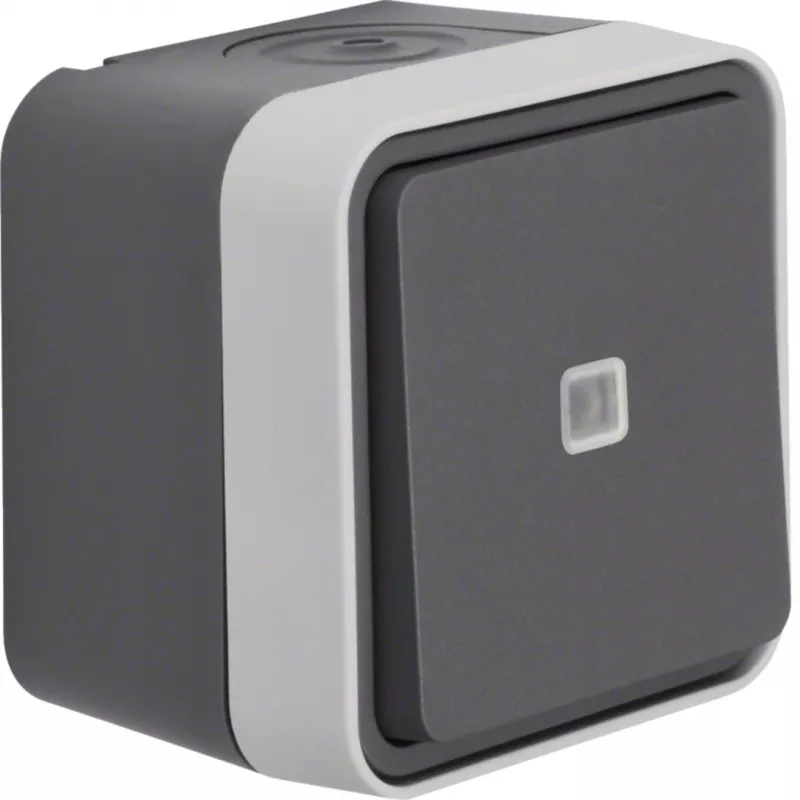

Hager WNC021 verlichte drukknop, wissel, opbouw, grijs, IP44

The Hager WNC021 is a high-quality illuminated push button switch designed for reliable control in residential and commercial installations. Part of the Hager W.1 series, this surface-mounted (AP) changeover switch features a built-in lamp for clear status indication, making it ideal for stairwells, corridors, and outdoor areas. Its robust thermoplastic construction and IP44 protection ensure durability against dust and splashing water, while the screw terminals provide secure and easy wiring.

Advantages

Clear visual feedback with integrated 230 V lamp; robust IP44 protection for semi-outdoor use; easy surface mounting; halogen-free and UV-stabilized materials for long life; screw terminals for reliable connections.

Suitable for

• Staircase lighting control
• Corridor and passageway switching
• Outdoor and sheltered area installations
• Industrial and commercial building controls

Key specifications

• Product Type: Push Button Switch, illuminated
• Switch Function: Changeover (1-pole)
• Mounting: Surface-mounted (AP)
• Rated Voltage: 250 V AC
• Rated Current: 10 A
• Lamp Voltage: 230 V
• Protection Class: IP44
• Colour: Grey (RAL 7035)
• Material: Thermoplastic, halogen-free, UV-stabilized
• Connection: Screw terminals
• Operating Temperature: -25 to +45 °C

Recommendations

For optimal performance, pair with Hager W.1 series cover frames and accessories. Ensure the load does not exceed 10 A at 250 V AC. Suitable for indoor and sheltered outdoor use.
