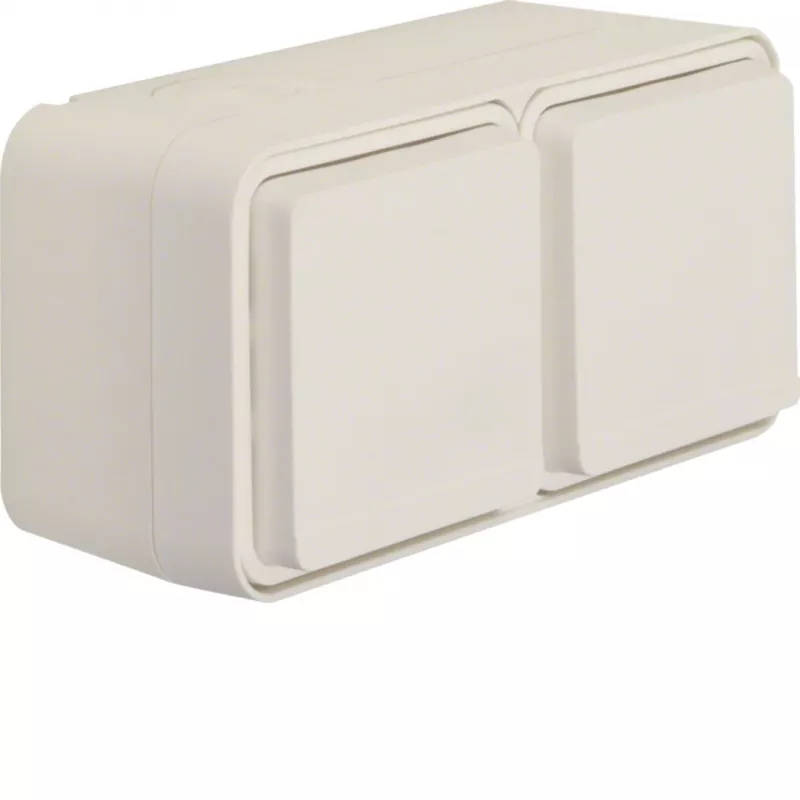

Hager WNC142B SCHUKO-stopcontact 2-voudig opbouw horizontaal met klepdeksel polarwit

The Hager WNC142B is a high-quality SCHUKO socket outlet designed for surface-mounted installation. Featuring a 2-gang horizontal configuration with a hinged lid, this socket outlet is ideal for demanding environments requiring reliable power distribution. Its robust thermoplastic construction and IP44 protection ensure durability and safety in both residential and commercial settings.

Advantages

This socket outlet offers easy installation with screw mounting and two cable entries on the left side. The hinged lid provides additional protection against dust and accidental contact, making it suitable for workshops, garages, and outdoor areas. The polar white finish (RAL 9010) blends seamlessly with modern interiors.

Suitable for

• Surface-mounted power distribution in dry and damp rooms
• Workshops, basements, and utility rooms
• Commercial and industrial applications requiring IP44 protection
• Horizontal installation where space is limited

Key specifications

• Socket type: SCHUKO (Type F)
• Number of sockets: 2
• Mounting type: Surface-mounted (AP)
• Orientation: Horizontal
• With hinged lid: Yes
• Colour: Polar white (RAL 9010)
• Rated voltage: 250 V
• Rated current: 16 A
• IP protection class: IP44
• Material: Thermoplastic
• Connection type: Screw terminals
• Number of cable entries: 2 (left side)
• Halogen-free: Yes
• Child protection: No (standard)
• Mounting method: Screw mounting

Recommendations

For optimal performance, use with appropriate Hager surface-mounted enclosures and cable management systems. Ensure installation by a qualified electrician in accordance with local regulations.
