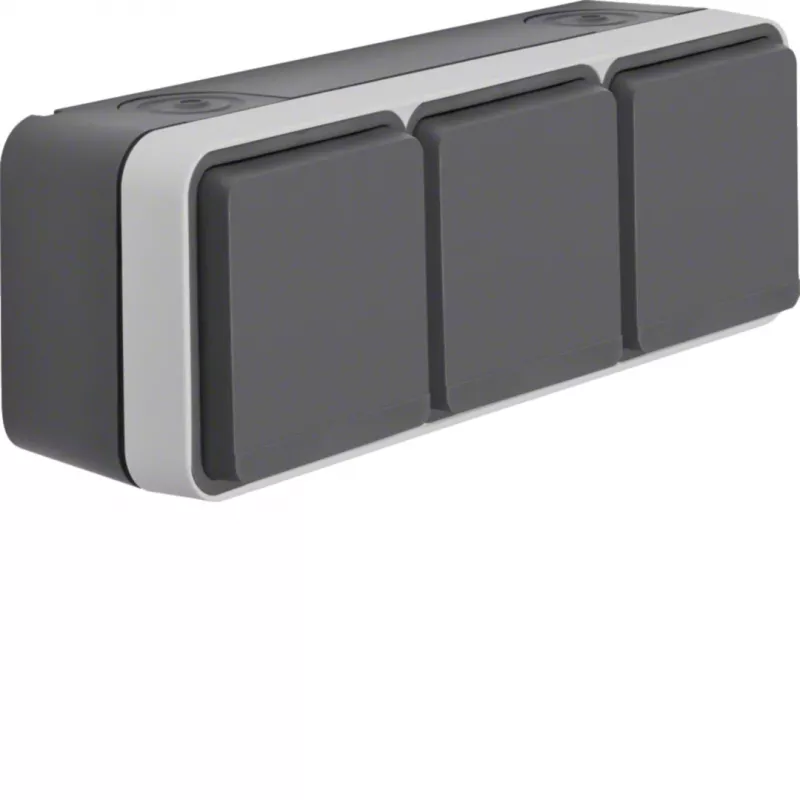

Hager WNC143 opbouw drievoudig SCHUKO-stopcontact met klepdeksels, IP55, grijs

When a standard indoor socket just won't survive the conditions, the Hager WNC143 steps in with a fully sealed, surface-mounted design that keeps three SCHUKO outlets protected behind hinged lids. Unlike basic multi-socket blocks, this unit is built for real-world exposure—rain, dust, workshop grime—and still delivers a clean, professional finish. The grey thermoplastic housing blends into utility areas, garages, and outdoor walls without looking out of place, while the IP55 rating means you can mount it where splashes and particles are a daily reality.

Highlights

• Three SCHUKO (Type F) sockets in a horizontal arrangement for flexible plug positioning.
• IP55 ingress protection: dust-protected and resistant to water jets from any direction.
• Hinged spring-loaded lids snap shut automatically to keep contacts clean and dry.
• Surface-mounted (AP) design for easy installation on walls, posts, or panels.
• Robust thermoplastic housing with IK07 impact resistance for demanding environments.
• Halogen-free construction for safer use in public and industrial buildings.
• Rated for 250 V AC, 16 A, 50/60 Hz—compatible with standard European appliances.
• Multiple cable entry points (top, bottom, rear) for neat, flexible wiring.
• Screw terminals accept up to 2.5 mm² flexible or rigid conductors.

In daily use

Mount the WNC143 wherever you need reliable power without worrying about moisture or mechanical knocks. The three sockets sit side by side, so bulky adapters can be spaced out without blocking each other. Each outlet has its own hinged lid—when a plug is removed, the lid closes automatically, sealing the contact area. This is especially useful in outdoor kitchens, carports, cellars, and workshops where dust and humidity are constant. The grey finish resists visible dirt and matches most industrial or utility aesthetics. Installation is straightforward: fix the base to the wall, connect the supply cable through one of the multiple knockouts, and secure the cover. The screw terminals provide a solid, maintenance-free connection, and the halogen-free plastic won't emit corrosive gases in the event of a fire.

Full specifications

• Brand: Hager
• Model: WNC143
• MPN: WNC143
• EAN: 3250610102244
• Socket type: SCHUKO (Type F)
• Number of sockets: 3
• Mounting type: Surface-mounted
• Orientation: Horizontal
• Ingress protection: IP55
• Impact resistance: IK07
• Colour: Grey
• Material: Thermoplastic, halogen-free
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Terminal capacity: Up to 2.5 mm²
• Cable entries: Top, bottom, rear
• Operating temperature: -25 °C to +45 °C
• Product series: Hager W.1

Final note

For outdoor power distribution, damp rooms, or any area where sockets face tough conditions, the Hager WNC143 offers a dependable, code-compliant solution. Its combination of three protected SCHUKO outlets, rugged build, and easy installation makes it a practical choice for electricians and DIYers alike.
