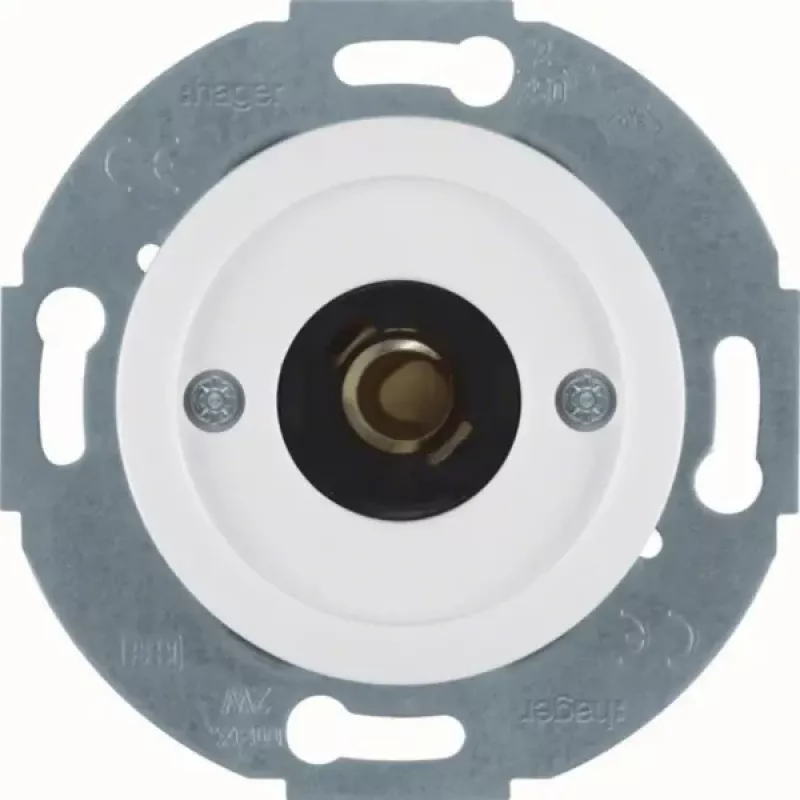

Hager WTE5182WG taster met controlelamp E10, middenstuk 1930/glas, glanzend wit

The Hager WTE5182WG is a high-quality push-button switch with integrated indicator light, designed for the Hager 1930/Glass series. This 1-module flush-mounted unit features a momentary switching function and is equipped with an E10 lamp (230V AC included). The glossy white thermoplastic finish, halogen-free materials, and screw terminal connections ensure reliable and safe operation in residential and commercial installations.

Advantages

Combines a push-button switch and indicator light in a single compact unit, saving space and simplifying wiring. The momentary contact design is ideal for doorbells, buzzers, or call systems. The integrated E10 lamp provides clear visual status indication. Compatible with Hager 1930/Glass cover frames for a seamless aesthetic.

Suitable for

• Doorbell and buzzer systems
• Call and signaling applications
• Lighting control with visual feedback
• Use with Hager 1930/Glass series cover frames

Key specifications

• Product Type: Push-button switch with indicator light
• Contact Configuration: 1 Normally Open (NO) / 1 Normally Closed (NC)
• Indicator Lamp Type: E10, 230V AC (included)
• Rated Current: 10 A
• Rated Voltage: 250 V AC
• Mounting: Flush-mounted (screw terminals)
• Design Line: Hager 1930/Glass
• Material: Thermoplastic, halogen-free
• Colour: Glossy White
• Protection Class: IP20
• Operating Temperature: -5 to +40 °C
• Number of Modules: 1-module
• Switching Function: Momentary
• Illumination: Yes, with integrated lamp

Recommendations

For best results, pair this push button with a matching Hager 1930/Glass cover frame. Ensure the supply voltage matches the lamp rating (230V AC). Suitable for indoor use only.
