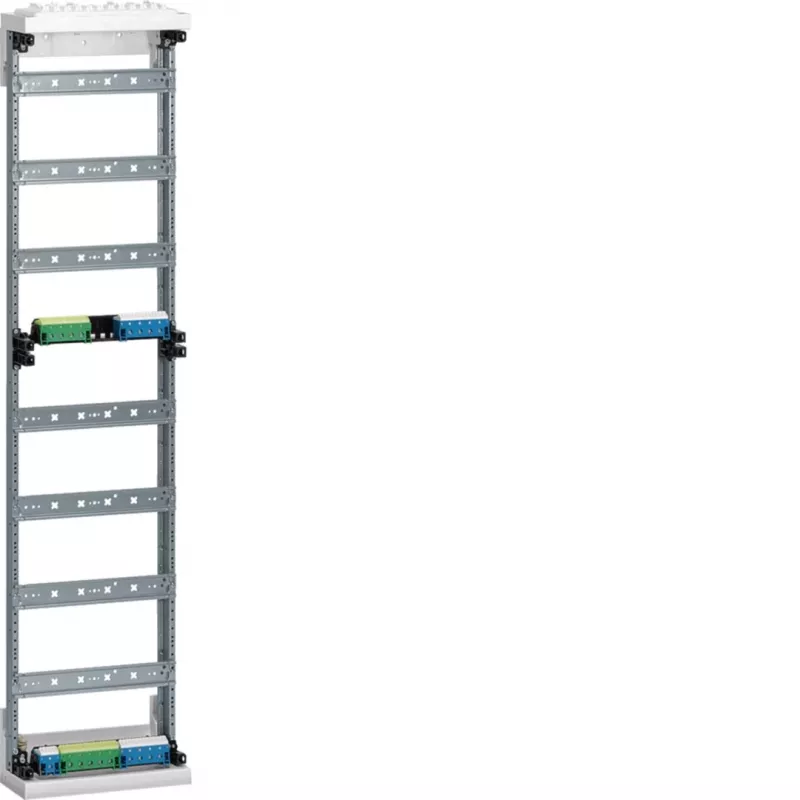

Hager ZAD717 nabouwveld voor meteraansluitzuil, 7 rijen, 12 modules per rij, N/PE-steekklemmen, reinwit

Electricians and panel builders upgrading Hager meter connection pillars use the ZAD717 retrofit field to add seven rows of DIN rail space with integrated N/PE plug-in terminals. The sheet steel unit in pure white (RAL 9010) is made for indoor distribution systems and accepts standard modular devices.

Key specifications

• Product type: Retrofit field
• Number of rows: 7
• Modules per row: 12 (TE)
• Total modules: 84 (TE)
• Integrated terminals: N/PE plug-in terminals (QuickConnect)
• N/PE terminal capacity: 2x (2.5-25 mm²), 2x (2.5-16 mm²), 14x (1.5-4 mm²)
• Material: Sheet steel
• Colour: Pure white (RAL 9010)
• Mounting type: DIN rail
• Rated voltage: 230/400 V AC
• Rated frequency: 50/60 Hz
• Installation location: Indoor

Why choose it

The retrofit field provides a fast way to expand existing meter connection pillars without replacing the entire enclosure. Its pre-installed N/PE plug-in terminals reduce wiring time and ensure reliable connections for a wide range of conductor sizes.

Ideal use cases

• Retrofitting Hager meter connection pillars with additional distribution rows
• Installing multiple modular circuit breakers, RCDs, or other DIN rail devices
• Indoor electrical distribution systems requiring a clean, white finish

Good to know

The ZAD717 is designed for indoor use and complies with DIN VDE 0603-1 and DIN 43870-1. The N/PE terminals use QuickConnect technology for tool-free insertion of solid conductors.
