Hager ZAS207BD15A meteraansluitzuil 207 Base 1 meter 3 zekeringen 5-polig + APZ

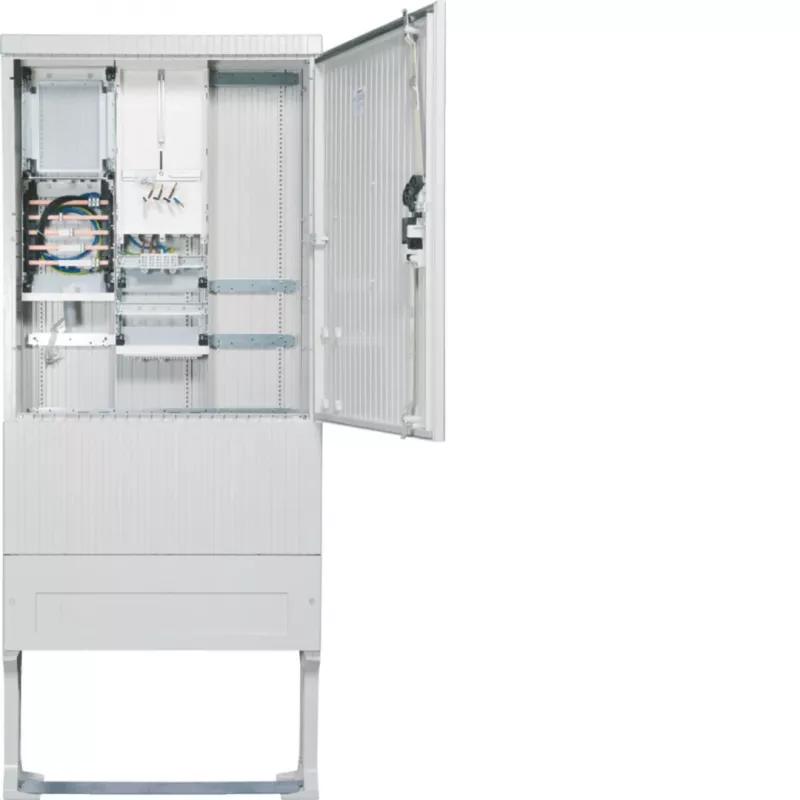

The Hager ZAS207BD15A is a robust meter connection column from the 207 series, designed for outdoor use. It provides a single meter position with three main fuses and a 5-pole connection, including an integrated APZ (additional applications) compartment. This freestanding column is ideal for TN-S and TT networks, supporting both eHZ and conventional meters.

Advantages

Durable glass-fiber reinforced polyester housing with IP44 protection ensures weather resistance. The column is pre-prepared for SLS switch installation and offers a cable section of 10-50 mm² for flexible wiring. The gray RAL 7035 finish and profile half-cylinder lock provide security and a professional appearance.

Suitable for

• Outdoor meter installations in residential and commercial buildings
• TN-S and TT network configurations
• Single-phase or three-phase metering with eHZ or conventional meters

Key specifications

• Product type: Meter connection column
• Number of meter positions: 1
• Number of main fuses: 3
• Number of poles: 5
• Rated current: 63 A
• Protection rating: IP44
• Housing material: Glass-fiber reinforced polyester
• Mounting type: Freestanding / underground cable connection
• Network forms: TN-S, TT
• APZ compartment: Integrated
• SLS switch preparation: Yes
• Meter compatibility: eHZ / conventional
• Main connection cross-section: 10-50 mm²
• Design: Base
• Application area: Outdoor
• Colour: Gray (RAL 7035)
• Door lock: Profile half-cylinder
• Cable entry: Bottom

Recommendations

Ensure proper grounding and follow local regulations for meter column installation. Use appropriate cable glands for bottom entry.
