Hager ZB32ET215W1 complete meterkast 1 meterplaats BKE-I APZ 1100mm 2-veld opbouw IP31 RAL 9010

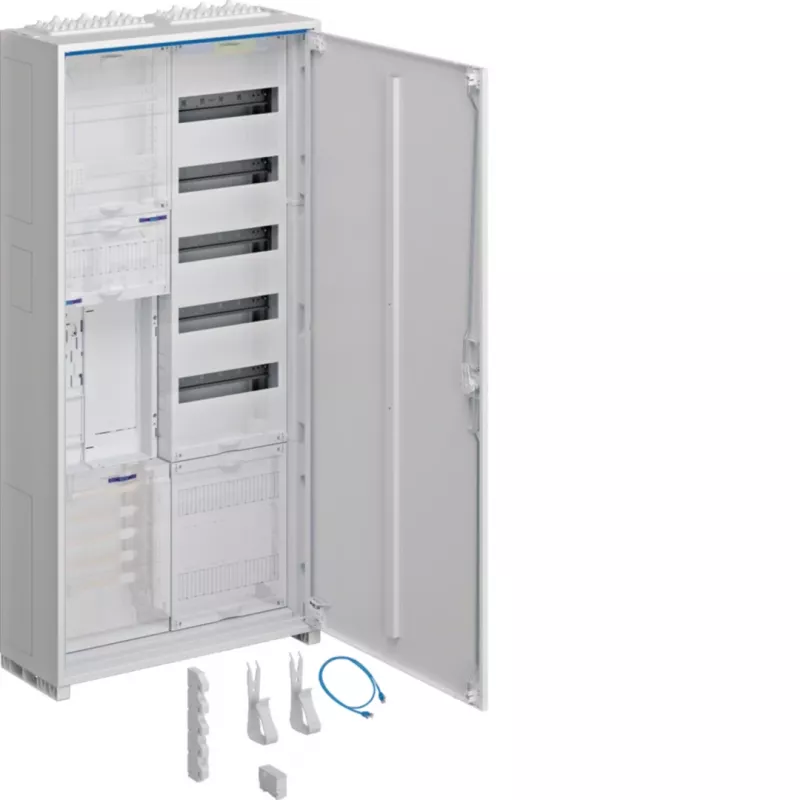

The Hager ZB32ET215W1 is a high-quality complete meter cabinet designed for residential and commercial electrical installations. It features a surface-mounted enclosure with one meter position, BKE-I mounting for eHZ electronic meters, and an integrated APZ (connection space for additional applications). The cabinet is 1100 mm high, 550 mm wide, and 215 mm deep, with a 2-field configuration providing 72 total distribution units (12 PLE in meter field + 60 PLE in distribution field). Made from powder-coated sheet steel in RAL 9010 (pure white), it offers protection class IP31 and complies with DIN VDE 0603-1, DIN 43870-1, and VDE-AR-N 4100 standards.

Advantages

This meter cabinet provides a complete, pre-configured solution for modern electrical metering and distribution. The integrated BKE-I mounting system ensures secure and easy installation of eHZ meters, while the APZ space allows for additional applications such as communication modules or load management devices. The 5-pole busbar system (L1, L2, L3, N, PE) supports up to 63 A rated current, and the opaque steel door offers robust protection. The cabinet is partially pre-wired for meter connection, saving installation time and reducing errors.

Suitable for

• Residential electrical installations requiring a single-phase or three-phase meter
• Commercial buildings with moderate distribution needs
• Upgrades to smart metering systems (eHZ compatible)
• Surface-mounted applications in utility rooms, basements, or garages

Key specifications

• Product Type: Electrical Meter Cabinet / Distribution Enclosure
• Number of Meter Positions: 1
• Meter Mounting Type: BKE-I (for eHZ electronic meters)
• APZ (Connection Space for Additional Applications): Integrated
• Number of Fields: 2
• Installation Type: Surface-mounted (Aufputz)
• Protection Class: IP31
• Material: Sheet steel, powder-coated
• Color: RAL 9010 (Pure white)
• Rated Current: Up to 63 A
• Total Distribution Units (PLE): 72 (12 PLE in meter field + 60 PLE in distribution field)
• Door Type: Opaque steel door
• Busbar System: 5-pole (L1, L2, L3, N, PE)
• Standards Compliance: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100
• Pre-wiring: Partially pre-wired for meter connection
• Height: 1100 mm
• Width: 550 mm
• Depth: 215 mm

Recommendations

For a complete installation, consider pairing this cabinet with Hager's range of compatible meters, circuit breakers, and accessories. Ensure that the mounting surface is flat and sturdy, and follow all local electrical codes and regulations. Professional installation by a qualified electrician is recommended.
