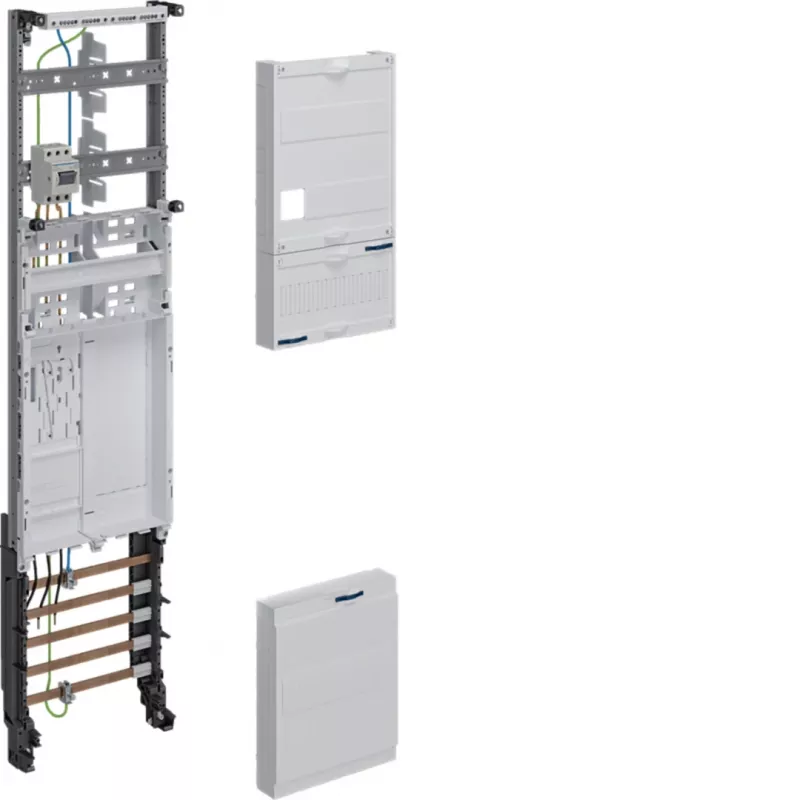

HAGER ZH3EF17T compleet meterveld BKE-I 1 positie 10mm² met scheidingsfunctie

Complete meter field for one meter position with BKE-I mounting and integrated disconnection function, rated for 63 A and 230/400 V AC. Pre-wired for quick installation in residential and commercial electrical installations.

Advantages

This complete meter field simplifies installation by combining the meter mounting unit, disconnection function, and pre-wired connections in a single unit. Its 5-pole busbar system ensures reliable power distribution, while the 10 mm² main conductor cross-section supports demanding loads.

Suitable for

• Residential electrical installations
• Commercial electrical installations
• Meter cabinets and distribution boards

Key specifications

• Number of meter positions: 1
• Meter mounting type: BKE-I
• Main conductor cross-section: 10 mm²
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Busbar system: 5-pole
• Number of distribution units (PLE): 7
• Number of distribution rows: 1
• Material: Steel sheet, plastic
• Main PE/N terminal cross-section: 16 mm²

Recommendations

Ideal for electricians seeking a pre-wired, ready-to-install meter field that meets DIN VDE 0603-1 and DIN 43870-1 standards.
