HAGER ZY02SD schuko-stopcontactmontagepakket voor flensmontage, 1-voudig, 250 V, 16 A, wit

Rated at 16 A and 250 V AC, the HAGER ZY02SD assembly package delivers a single Schuko socket engineered for flange mounting in meter cabinets and distribution boards.

Overview

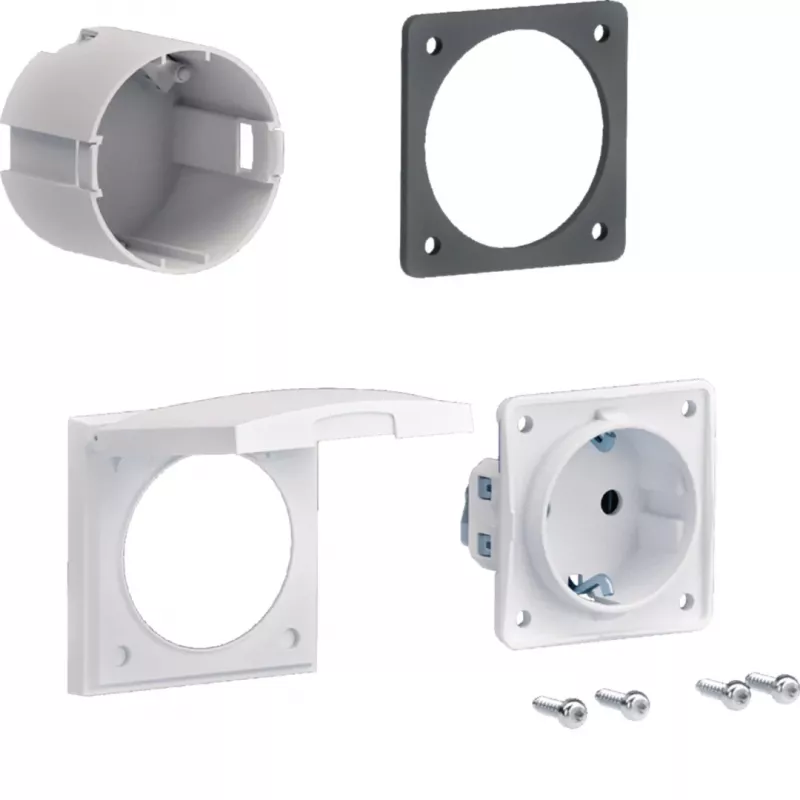

The HAGER ZY02SD is a fitting kit that includes a Schuko socket, mounting frame, and connection terminals, ready for integration into flange fields. Its screw terminal connection ensures a secure, maintenance-friendly installation, while the plastic construction in white/light grey blends into standard electrical enclosures.

What stands out

• Schuko (Type F) socket for standard European plugs
• Flange mounting for clean integration into cabinet fronts
• Screw terminals for reliable conductor retention
• Compact design suited for APZ spaces and meter cabinets

Technical details

• Socket type: Schuko (Type F)
• Number of sockets: 1
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection type: Screw terminals
• Material: Plastic
• Colour: White / Light Grey
• Frequency: 50/60 Hz
• Protection class: IP2X
• Standard: DIN VDE 0620-1

Our verdict

A straightforward, code-compliant Schuko socket assembly for Hager cabinet systems—ideal for electricians needing a reliable flange-mounted power point.
