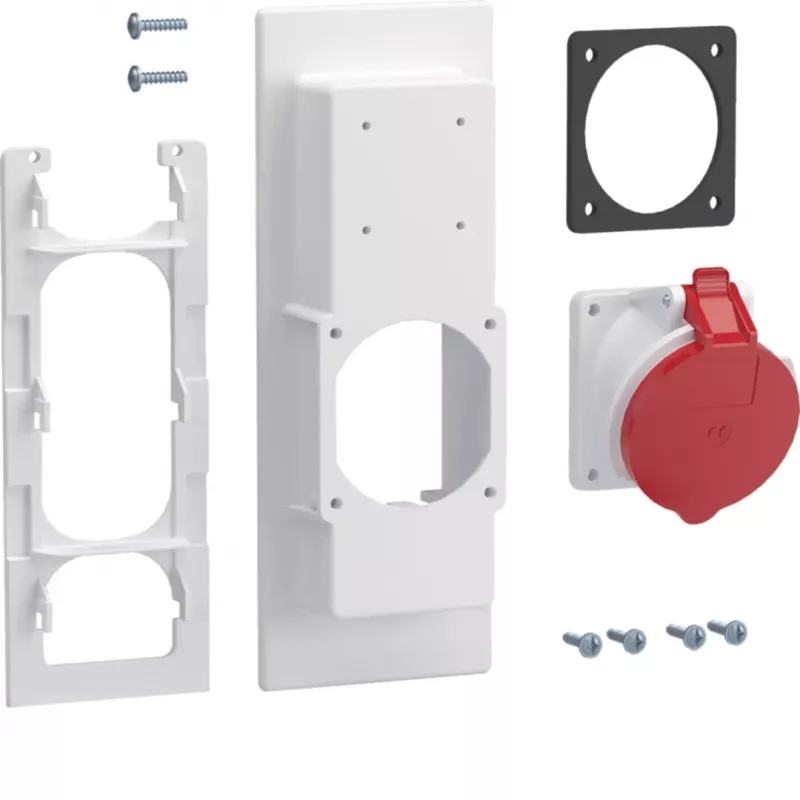

HAGER ZY16CEE 16 A 5-polige CEE-inbouwcontactdoos 400 V IP44 rood

The HAGER ZY16CEE is a 16 A CEE flange socket built for industrial and commercial power distribution. Its 5-pin (3P+N+E) configuration with 6h clock position ensures correct phase rotation, while the IP44 rating protects against splashing water, making it suitable for construction sites, agriculture, and outdoor installations.

Highlights

• 16 A rated current and 400 V AC (380-415 V) for three-phase equipment
• IP44 splash-proof protection for demanding environments
• Flange-mounted design with rear cable entry for panel integration
• Robust polyamide (PA6) housing in red for high visibility

In daily use

This socket provides a reliable connection for portable distribution boards, generators, and industrial machinery. The screw terminals ensure secure wiring, and the self-extinguishing housing adds safety in case of fire. Operating temperature range from -25°C to +40°C allows use in harsh conditions.

Full specifications

• Socket type: CEE flange socket
• Current rating: 16 A
• Number of poles: 5-pin (3P+N+E)
• Voltage rating: 400 V AC (380-415 V)
• Frequency: 50/60 Hz
• IP protection class: IP44
• Clock position: 6h
• Mounting type: Flange-mounted / Panel-mounted
• Connection type: Screw terminals
• Housing material: Polyamide (PA6)
• Colour: Red
• Standards: IEC 60309-1, IEC 60309-2
• Operating temperature: -25°C to +40°C
• Cable entry: Rear
• Flammability rating: Self-extinguishing

Final note

Designed for reliable three-phase power connections in industrial settings, the HAGER ZY16CEE combines durability with safety.
