HAGER ZY450APZ APZ-nabouwpakket voor meter- en verdeelkasten, 1-veld, VDE-AR-N 4100, verkeerswit

This APZ retrofit kit delivers a dedicated, standards-compliant space for smart meter gateways and communication modules in existing Hager univers Z and univers N cabinets. The single-field unit combines a galvanized steel mounting plate with a halogen-free thermoplastic cover in traffic white (RAL 9016), ensuring a clean, professional finish while meeting VDE-AR-N 4100 technical connection rules for low-voltage installations.

Advantages

Future-proof your electrical distribution without replacing the entire cabinet. This retrofit solution allows quick and cost-effective integration of an APZ field into existing installations, reducing downtime and material waste. The transparent cover provides visual inspection access while maintaining IP30 protection against accidental contact. Modular design ensures flexible positioning within the cabinet, and the included mounting accessories simplify installation.

Suitable for

• Retrofitting smart meter gateways in residential and commercial buildings
• Hager univers Z and univers N cabinet systems
• Indoor, dry environments such as electrical rooms, basements, and utility closets
• Electricians and panel builders requiring VDE-AR-N 4100 compliance

Key specifications

• Product type: APZ field retrofit kit (1-field unit)
• Field dimensions: 450 mm height × 250 mm width
• Mounting depth: approx. 120 mm
• Mounting plate material: galvanized steel
• Cover material: halogen-free thermoplastic, traffic white (RAL 9016)
• Protection class: IP30 (with cover installed)
• Standard compliance: VDE-AR-N 4100
• Compatibility: Hager univers Z and univers N

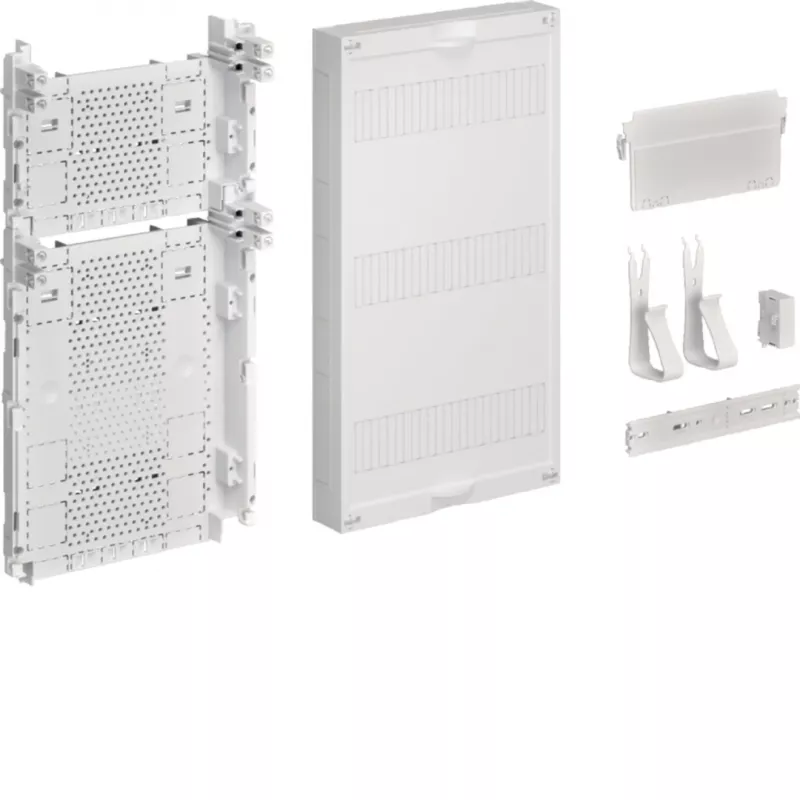

• Components included: mounting plate, transparent cover, mounting accessories

Recommendations

Ideal for electricians and panel builders seeking a cost-effective way to bring existing Hager cabinets up to current smart metering standards without full replacement.
