Hangbeugel Hikvision DS-1271ZJ-110 (zwart)

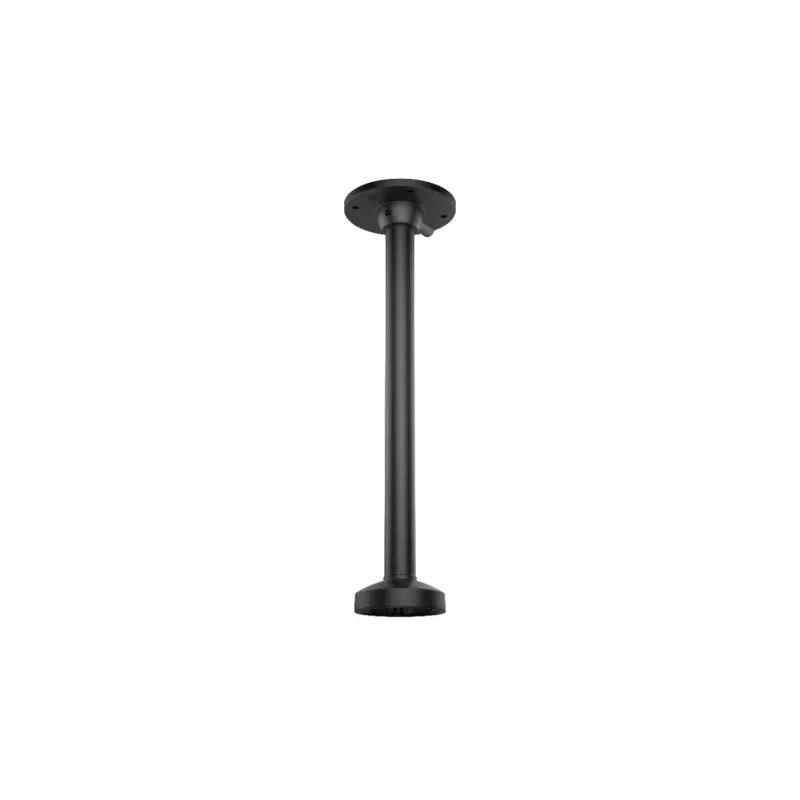

The Hikvision DS-1271ZJ-110(Black) pendant bracket is an outdoor mounting accessory engineered to support surveillance cameras and compatible devices. Finished in matte black, the bracket provides a neat, low-profile mounting option with a height of 500 mm, an arm diameter of 11 cm and a base plate diameter of 15 cm. It is rated to carry loads up to 4.5 kg and is supplied as a single unit per pack, suitable for use where a sturdy, weather-resistant pendant mount is required.

Advantages

The bracket offers stable support for compact and medium-weight cameras while maintaining a discreet appearance thanks to its black finish. Its metal construction delivers mechanical strength and dimensional stability for reliable outdoor performance. The moderate arm length and base size allow flexible positioning and straightforward installation on vertical surfaces. Compatibility with common pendant-mount camera housings and cable routing through the bracket help preserve a tidy installation.

Suitable for

• Mounting dome and PTZ cameras in outdoor environments
• Surveillance installations on building facades and eaves
• Replacing or upgrading existing pendant mounts
• Applications requiring concealed cable routing and secure attachment

Key specifications

• Material: corrosion-resistant metal construction
• Finish: matte black protective coating
• Maximum supported weight: 4.5 kg
• Overall height: 500 mm
• Arm/pipe diameter: 11 cm
• Base plate diameter: 15 cm
• Packaging: one unit per pack

How to use

Position the bracket on a suitable vertical surface and mark mounting holes using the base plate as a template. Drill appropriate holes for wall anchors or fasteners compatible with the mounting surface. Route camera cables through the bracket arm where applicable before securing the base plate with corrosion-resistant screws. Attach the camera housing to the pendant mount and verify that the total weight does not exceed 4.5 kg. After installation, adjust camera orientation and tighten all fasteners to prevent movement.

Recommendations

Use the bracket with cameras and housings whose combined weight is below the rated 4.5 kg. Select fixings appropriate to the mounting substrate (concrete, brick, wood, or metal) and apply sealant around the base plate if installed outdoors to prevent water ingress. Periodically inspect fasteners and corrosion-resistant coating, especially in coastal or industrial environments, and follow manufacturer guidance for compatible camera models and housings.
