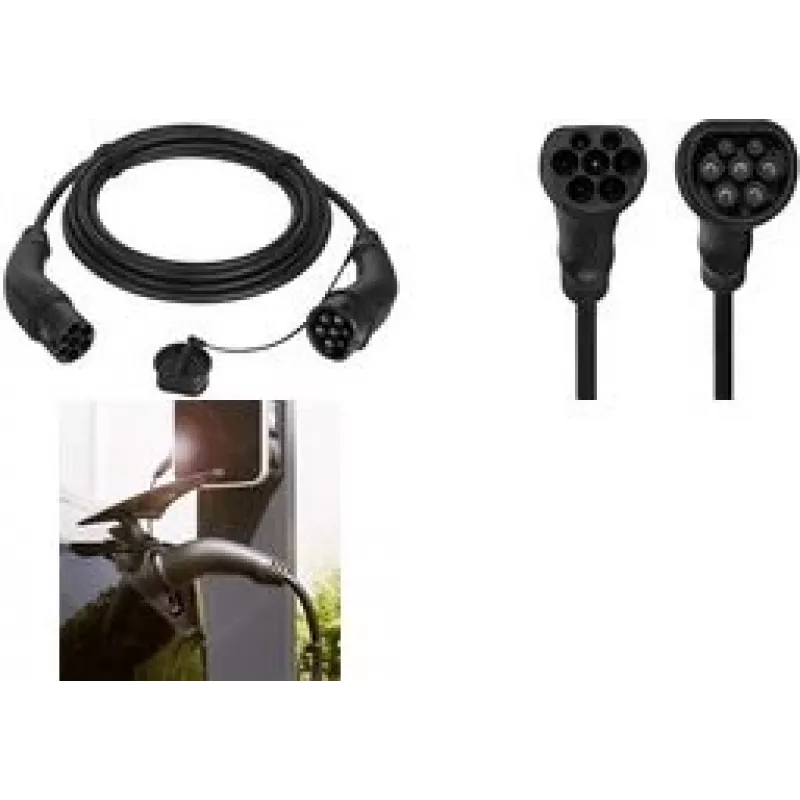

HARTING EVC0106 EV-laadkabel Type 2 3-fase 20 A 11 kW 7,5 m zwart

Charge your electric vehicle at up to 11 kW with this robust 7.5-metre Type 2 charging cable, engineered for 3-phase 400 V AC and 20 A continuous current. The HARTING EVC0106 delivers dependable Mode 3 charging for everyday use, with a flexible TPU jacket that shrugs off abrasion, oil, and UV exposure.

Overview

The HARTING EVC0106 is a premium EV charging cable with Type 2 connectors on both ends, fully compliant with IEC 62196-2 and EN 50620. Its 5 x 2.5 mm² power conductors plus 2 x 0.5 mm² signal wires ensure safe, efficient power transfer while the TPU outer sheath remains flexible even at -30°C. IP54-rated connectors protect against dust and splashes when plugged in, making it suitable for outdoor charging stations and home wallboxes alike.

What stands out

• 3-phase 400 V AC, 20 A, 11 kW maximum charging power
• 7.5 m cable length for convenient reach across driveways and garages
• Durable TPU jacket with high abrasion, oil, and UV resistance
• IP54 ingress protection on connectors when mated
• Wide operating temperature range from -30°C to +50°C
• CE and RoHS compliant, built to EN 50620 and IEC 62196-2

Technical details

• Connector type (vehicle side): Type 2 (IEC 62196-2)
• Connector type (infrastructure side): Type 2 (IEC 62196-2)
• Charging mode: Mode 3
• Phase configuration: 3-phase
• Maximum current rating: 20 A
• Maximum charging power: 11 kW
• Nominal voltage: 400 V AC
• Cable length: 7.5 m
• Cable cross-section: 5 x 2.5 mm² + 2 x 0.5 mm²
• Number of conductors: 7 (L1, L2, L3, N, PE, CP, PP)
• Cable material: TPU (thermoplastic polyurethane)
• Conductor material: copper
• Ingress protection (connectors): IP54 (when connected)
• Operating temperature range: -30°C to +50°C
• Standards compliance: IEC 62196-2, EN 50620, CE, RoHS
• Colour: black

Our verdict

The HARTING EVC0106 is a workhorse charging cable built for daily use in demanding conditions. Its 7.5-metre length and rugged TPU construction make it a reliable choice for both home and public charging, while the 11 kW output keeps charging times short. If you need a durable, fully compliant Type 2 cable, this one delivers.
