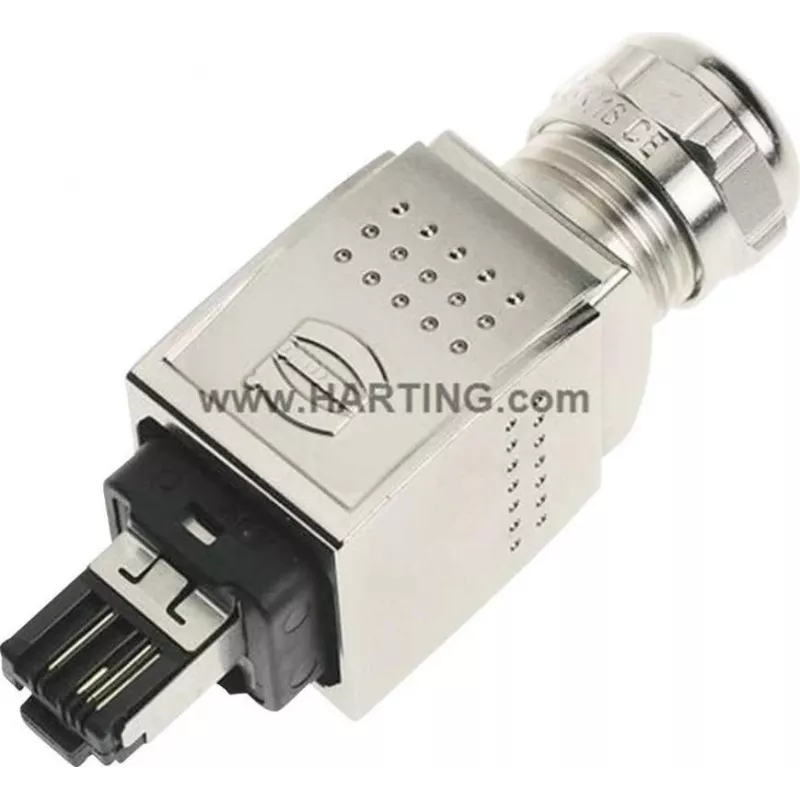

HARTING Han 3A RJ45 Cat. 6A connectorinzet, IDC, 8P, 1,5A, 125V 09352260401

Deliver 10 Gigabit Ethernet over a robust industrial interface with the HARTING Han 3A RJ45 Cat. 6A connector insert. Engineered for high-speed data transmission in demanding environments, this insert combines the familiar RJ45 interface with the durability of the Han 3A housing system.

Overview

The HARTING 09352260401 is an RJ45 connector insert belonging to the Han 3A series. It supports 10 Gigabit Ethernet (10 Gbit/s) and is rated for 1.5 A current and 125 V voltage. The insert features 8 contacts with IDC (Insulation Displacement Contact) termination, allowing quick and reliable connection of solid or stranded wires from AWG 27 to AWG 22. It accommodates cable diameters from 4.5 mm to 8 mm and operates within a temperature range of -40 °C to +70 °C. The insert is designed for use with Han 3A housings, providing a degree of protection up to IP65/IP67 when properly mated.

What stands out

• Supports 10 Gigabit Ethernet for high-speed data transfer
• IDC termination enables fast, tool-less wire connection
• Wide operating temperature range from -40 °C to +70 °C
• Compatible with Han 3A housings for industrial protection
• Gold-plated contacts ensure reliable signal integrity

Technical details

• Connector type: RJ45 connector insert
• Series: Han 3A
• Transmission category: Cat. 6A
• Ethernet speed: 10 Gigabit Ethernet (10 Gbit/s)
• Number of contacts: 8
• Termination method: IDC (Insulation Displacement Contact)
• Rated current: 1.5 A
• Rated voltage: 125 V
• Operating temperature range: -40 °C to +70 °C
• Mating cycles: ≥ 500
• Wire gauge (solid/stranded): AWG 27 - AWG 22
• Cable diameter range: 4.5 mm - 8 mm
• Contact material: Copper alloy
• Contact plating: Gold
• Insulator material: Polycarbonate (PC)
• Flammability rating: UL 94 V-0
• Degree of protection (mated): IP65 / IP67 (with appropriate Han 3A housing)
• Mounting type: Panel / Cable (for Han 3A housings)
• RoHS compliant: Yes

Our verdict

For industrial Ethernet applications requiring high-speed data and reliable connectivity, the HARTING Han 3A RJ45 Cat. 6A insert is a proven choice. Its IDC termination and wide temperature range make it suitable for harsh environments.
