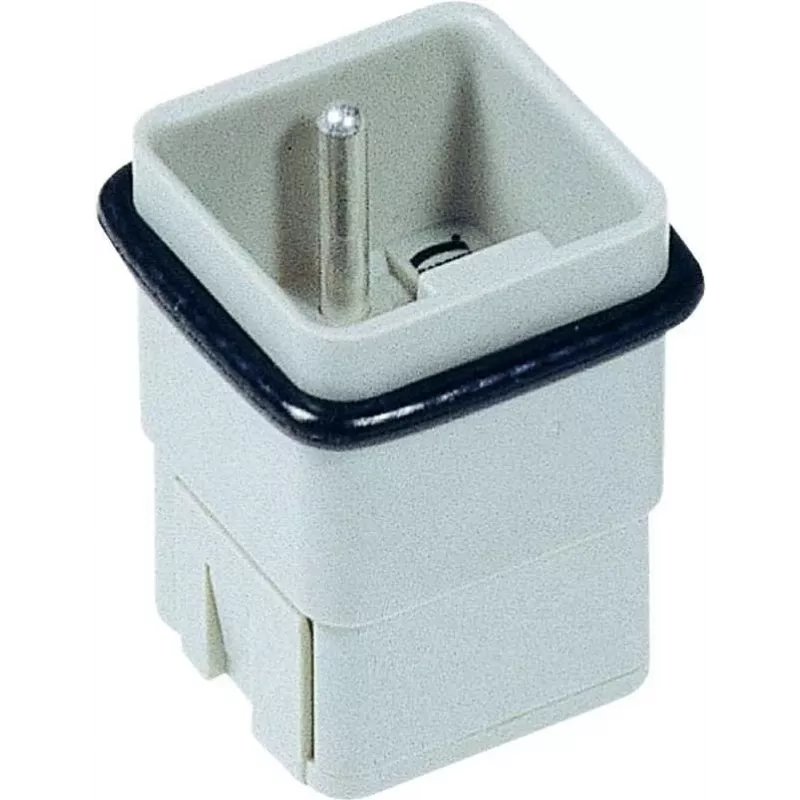

Harting Han® Q stiftinzet 09 12 005 3001 5+PE crimpcontact-stiftinzet, uit één stuk

Harting Han® Q Stifteinsatz 09 12 005 3001 is a crimp pin insert with five signal positions plus a protective earth (PE) contact, supplied as a single-piece contact insert for rectangular Han® Q housings. The insert is intended for use in industrial connector assemblies to provide reliable signal and protective-earth connections in machinery, control cabinets and automation systems. The design suits crimp-style wire termination and is compatible with Han® Q housings that accept single-piece pin inserts.

Advantages

This crimp pin insert provides a compact arrangement of five signal contacts plus a dedicated PE contact in one unit, reducing assembly time by avoiding individual contact insertion. The single-piece construction ensures stable positioning within the housing and helps maintain contact alignment under vibration or mechanical stress. Using crimp-style terminations promotes reproducible electrical connections and simplifies field wiring and maintenance.

Suitable for

• Signal wiring in industrial machinery and automation equipment
• Control cabinet connector modules requiring PE and multiple signal contacts
• Applications where crimp termination is preferred for repeatable connections
• Retrofits or new installations using Han® Q rectangular housings

When it may not be suitable

This insert is intended for crimped conductors and for housings sized for Han® Q single-piece pin inserts; it is not suitable where screw-termination contacts, push-in termination, or different housing formats are required. It may also be unsuitable for applications requiring high-current power contacts beyond typical signal and PE ratings or where special contact plating or environmental sealing beyond standard connector provisions is required.

Key specifications

• Contact configuration: 5 signal contacts + 1 protective earth (PE)
• Termination style: crimp contact
• Delivery form: single-piece pin insert for rectangular housing
• Intended use: signal and protective-earth connections in industrial connectors

How to use

Prepare conductor ends and crimp them with suitable crimp contacts using an appropriate crimping tool and ferrules where required. Insert the crimped contacts into the pin insert according to contact numbering and wiring diagram, ensuring secure engagement. Place the completed pin insert into the compatible Han® Q rectangular housing until it locks into position, then assemble the mating connector half and secure the housing as specified by the connector system documentation. Verify continuity and correct PE connection before energizing the system.

What to consider before purchase

• Confirm compatibility of the pin insert with the specific Han® Q rectangular housing model you are using
• Verify that crimp termination is the required termination method for your installation
• Assess conductor cross-section range and suitable crimp contacts/tools for reliable connections
• Check environmental and current carrying requirements to ensure the insert meets application needs

Recommendations

Use dedicated crimp tools and contact types recommended for the contact family, follow the connector system's assembly instructions, and perform electrical tests (continuity, insulation resistance) after assembly to ensure correct signal and PE wiring before commissioning.
