HDD-montagebeugel Sandberg 2.5'' harde schijf montagekit

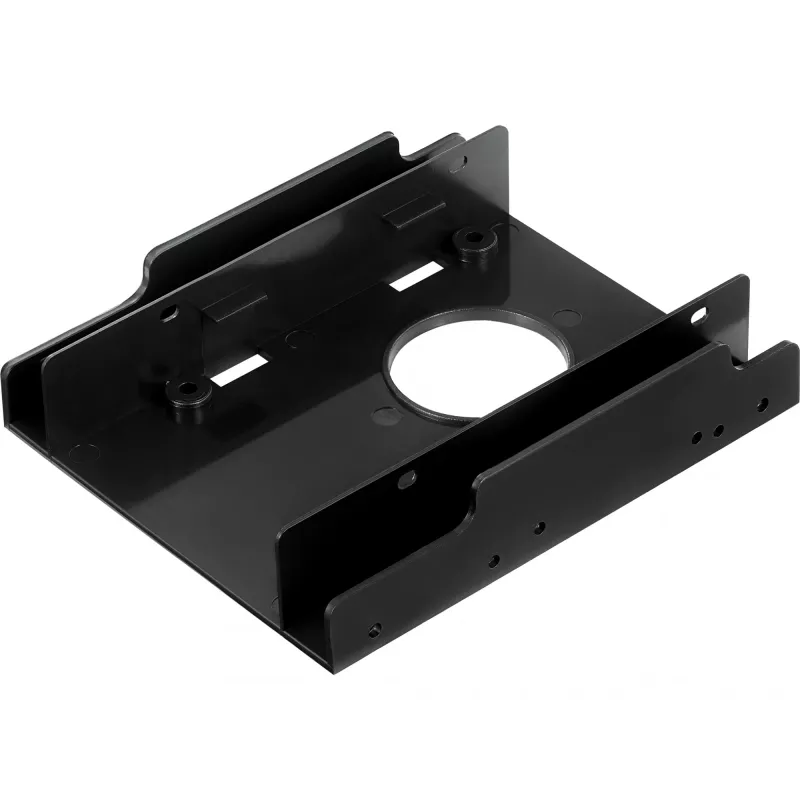

The Sandberg 2.5'' Hard Disk Mounting Kit is a compact mounting bracket that lets you install one 2.5" drive into a standard 3.5" bay in a desktop computer. The kit is supplied with the screws required to secure the drive to the tray and the tray to the 3.5" bay. Its slim black design and lightweight construction make it suitable for attaching an SSD or reusing a laptop hard disk in a desktop system.

Advantages

The bracket provides a straightforward and space-efficient way to fit a single 2.5" HDD or SSD into a 3.5" bay without modification to the chassis. Included mounting hardware reduces the need to source additional parts. The product’s small weight and black finish ensure compatibility with most desktop interiors while keeping installation simple and neat.

Suitable for

• Installing a 2.5" SSD in a desktop computer
• Reusing a laptop 2.5" HDD as additional storage
• Upgrading a PC with an extra drive where only 3.5" bays are available

Key specifications

• Supported drives: 1 × 2.5" HDD/SSD
• Dimensions: 160 mm (W) × 122 mm (D) × 25 mm (H)
• Colour: Black
• Weight: 0.039 kg
• Included: mounting bracket and screws
• Brand: SANDBERG, MPN: 135-90

How to use

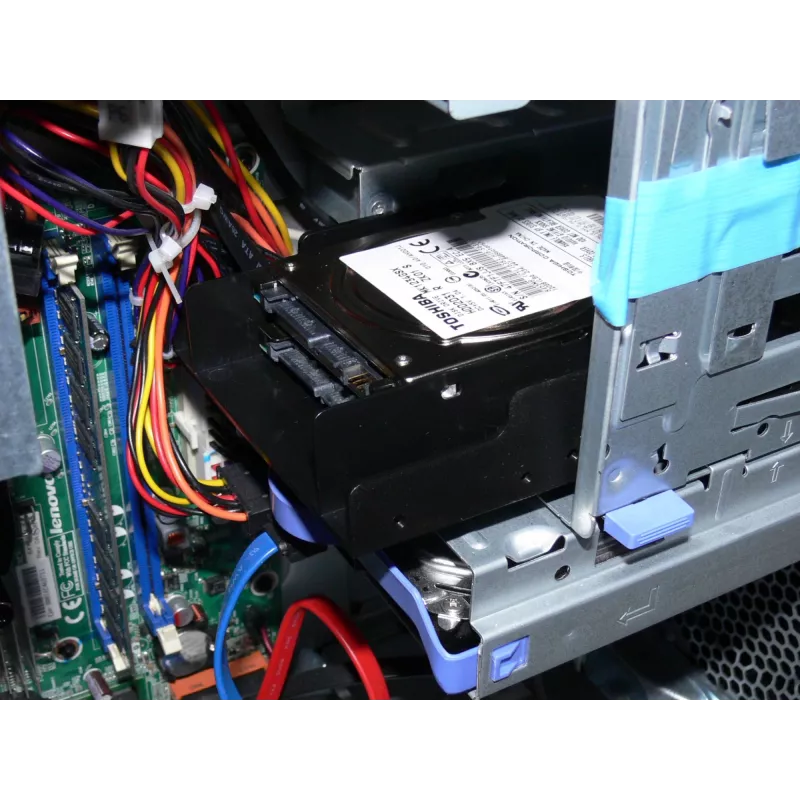

Attach the 2.5" drive to the mounting tray using the supplied screws, align the tray inside a free 3.5" drive bay, and secure the tray to the bay with the provided screws. Connect the drive to the motherboard SATA and power connectors, then close the case and power on the computer. After booting, check the operating system or BIOS to ensure the drive is recognized.

Recommendations

Install or remove the drive with the computer powered off and unplugged. Use the screws provided and avoid overtightening. For optimal performance with SSDs, connect the drive to a SATA III port when available.
