HDMI-adapter DeLOCK Easy 45 haaks 90°

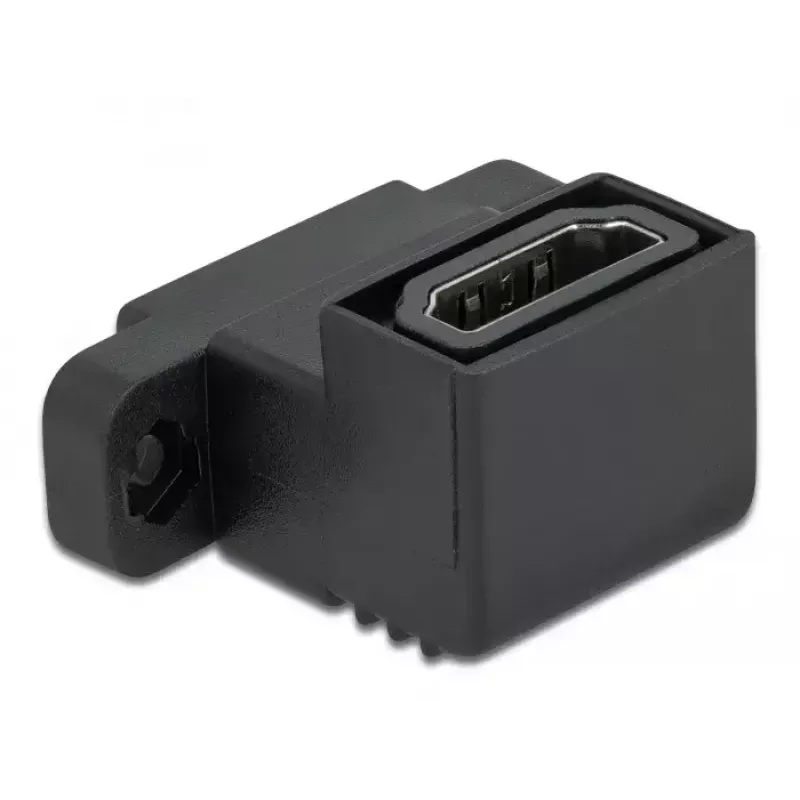

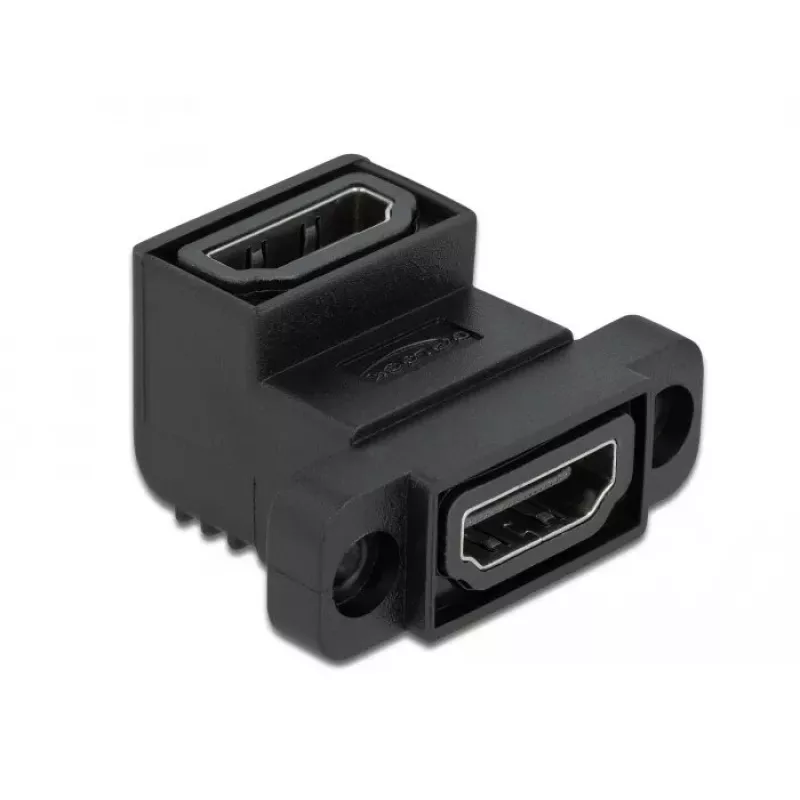

The DeLOCK Easy 45 HDMI adapter is a compact angled 90° connector designed to join two HDMI Type A cables. It can be used to extend existing HDMI cables or as a gender changer. Two mounting holes on the side permit screwing the adapter into devices, furniture or a module holder for fixed installation.

Advantages

The adapter's 90° angled design helps save space behind devices and in narrow installation areas. Two standard HDMI Type A ports ensure compatibility with common HDMI cables and devices. Its shape and hole spacing are matched to the DeLOCK Easy 45 module cover for easy integration into a 45 mm cable duct or module holder. The black finish provides a discreet appearance.

Suitable for

• Extending HDMI cables in tight spaces
• Changing connector gender between HDMI cables
• Mounting in Delock Easy 45 module cover or 45 mm cable duct
• Fixed installations in furniture or devices using side screws

Key specifications

• Connector 1: HDMI Type A (Standard)
• Connector 2: HDMI Type A (Standard)
• Angle: 90°
• Colour: Black
• Compatibility: Designed for DeLOCK Easy 45 module cover and 45 mm cable ducts
• MPN: 81308, EAN: 4043619813087

How to use

Insert HDMI plugs from two cables into the adapter's HDMI Type A ports until they click or seat firmly. For space-constrained setups, orient the adapter so the 90° angle directs the cable along the desired path. If a fixed mounting is required, align the adapter with the matching holes in the Delock Easy 45 module cover or your mounting surface and secure it with screws through the side holes.

Recommendations

Use the adapter in combination with certified HDMI cables and, when mounting, ensure screws are tightened gently to avoid damaging the adapter housing. Avoid excessive bending of cables at the connector to maintain signal integrity.
