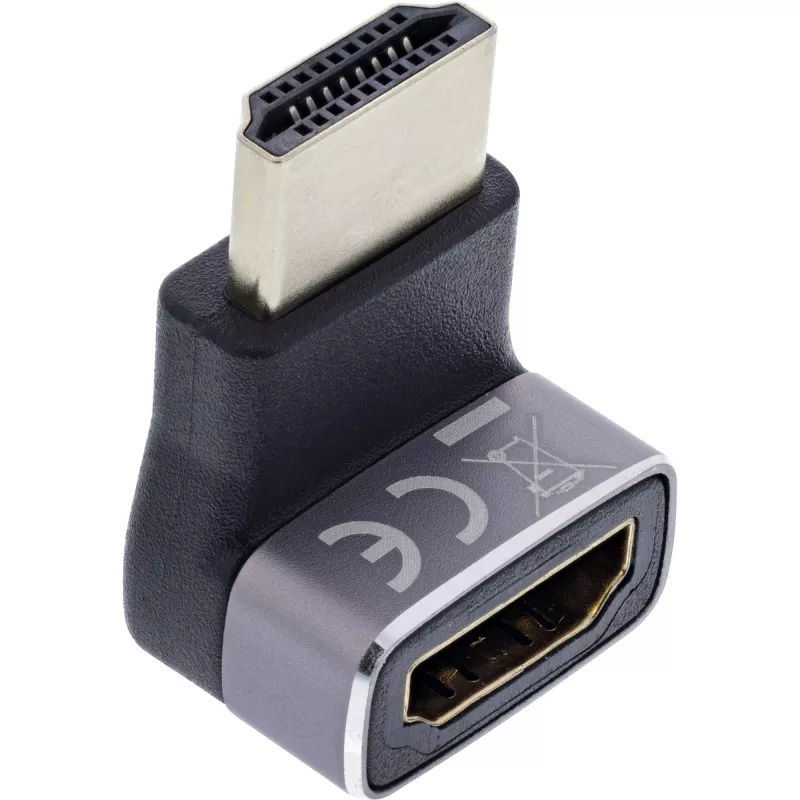

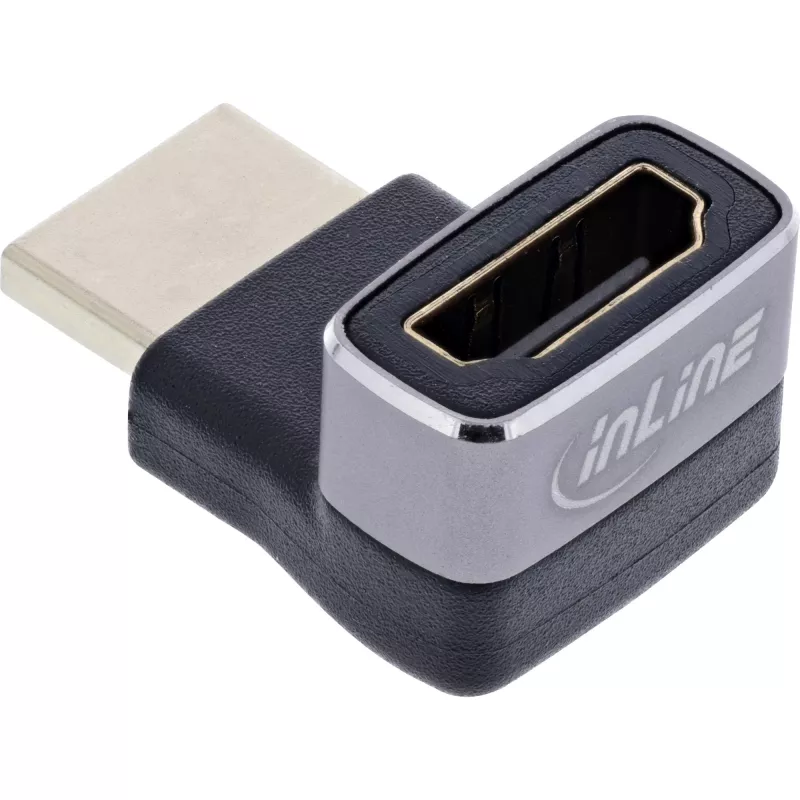

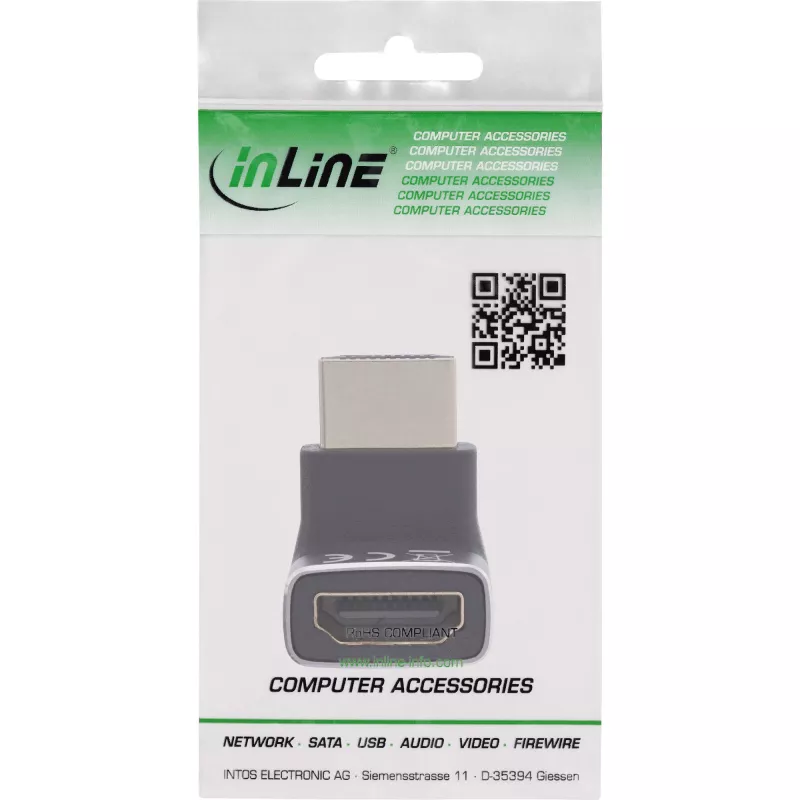

HDMI-adapter InLine 17991G zwart grijs verguld

Space-saving installation:The 90-degree angle allows connection in tight spaces and reduces stress on the HDMI port.
Uncompromised signal transmission:The 1:1 pin assignment supports stable transmission of digital audio and video signals.
Suitable for high-resolution applications:Supports UHD 8K and has been tested in practice with 3840x2160 at 120 Hz and 4:4:4 8 bits.
Reliable contact technology:Gold-plated contacts reduce contact resistance and ensure permanently stable signal paths.
Robust aluminum housing:The metal construction protects the internal contact surfaces and is suitable for demanding installation environments.

The HDMI adapter enables the connection or redirection of an HDMI cable in space-critical installations. The 90-degree angle facilitates use in areas where there is little distance between the device and the wall. The HDMI A plug and socket side allows direct integration into existing HDMI routes without additional active components.
The 1:1 pin assignment ensures unadulterated transmission of digital audio and video signals. The adapter supports resolutions up to UHD 8K and has been successfully tested in practice with 3840x2160 at 120 Hz and 4:4:4 8 bits. Gold-plated contacts minimize contact resistance and contribute to stable signal transmission.
The robust aluminum housing protects the contact surfaces and allows use in stationary and mobile installations. The recommended total length of the signal connection is up to 1.5 meters and can reach a maximum of 2 meters.
The compact design makes the adapter suitable for installation environments where HDMI signals need to be safely and efficiently redirected or extended.

Item width: 2.0 cm
Item height: 1.5 cm
Item length: 3.0 cm
Audio: Yes
Housing material: Aluminum
Outer jacket: Black PVC
Side A: HDMI A plug
Side B: HDMI A socket
Angle direction: 90 degrees up
Signal type: Audio/video
Type: Gold-plated contacts
Contact resistance: 3 ohms
Insulation resistance: DC 300V 10M ohms
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +80 °C
Recommended total length: up to 1.5 m, maximum 2 m

InLine 17991G. Connector 1: HDMI A, Connector 2: HDMI A, Connector contacts plating: Gold. Product colour: Black, Grey

How to use

Insert the HDMI male connector of the adapter into the HDMI port on the display or source device, matching the required 90° orientation to achieve the best fit. Then plug the HDMI cable into the female HDMI A socket of the adapter. Ensure connections are firm but do not force the connector if resistance is felt.

Recommendations

For best results, use this adapter in installations where the display is close to a wall to avoid bending or stressing the HDMI cable; verify the correct 90° orientation (up, down, left or right) before finalizing the installation.
