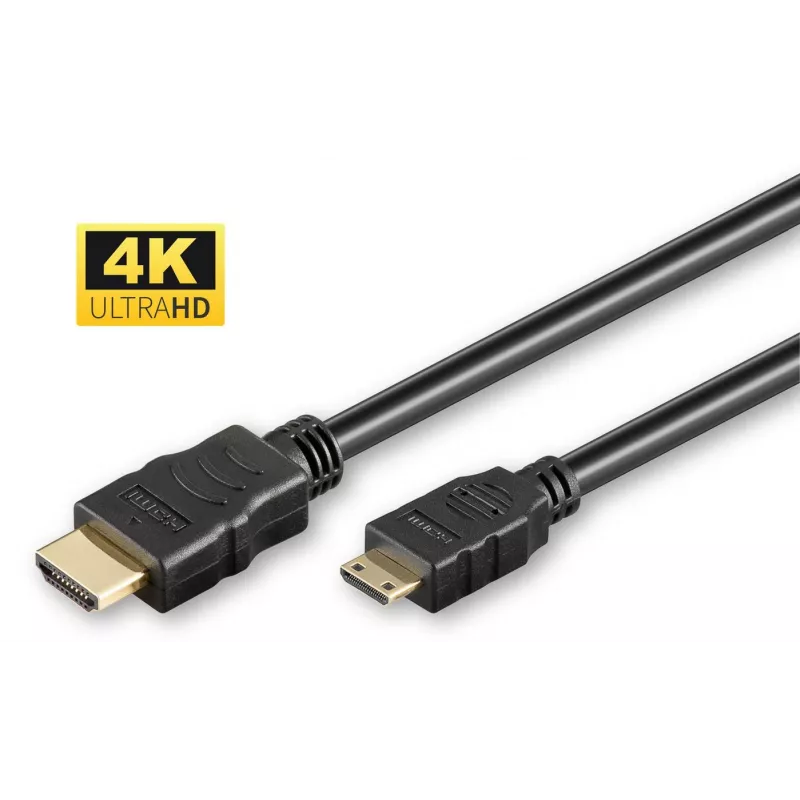

HDMI High Speed mini-kabel Microconnect HDM1919C2 2 m

The Microconnect HDM1919C2 HDMI High Speed Mini Cable (2 m) is a black HDMI 1.4 cable with HDMI Type A (standard) and HDMI Type C (mini) connectors. It features gold-plated contacts and supports a maximum resolution of 3840 x 2160 (4K@30Hz) with HDCP 2.2, CEC and ARC, providing digital transmission of video and audio between compatible devices at up to 10.2 Gbit/s.

Advantages

This HDMI High Speed Mini Cable offers reliable digital audio and video transmission with gold-plated contacts for improved conductivity and corrosion resistance. With support for HDMI 1.4 features such as 3D, ARC and CEC and a 10.2 Gbit/s data rate, the cable is suitable for connecting cameras, tablets or small devices with a mini-HDMI output to displays or AV receivers with a full-size HDMI input.

Suitable for

• Connecting cameras, camcorders and tablets with HDMI Type C (Mini) output to TVs or monitors with HDMI Type A input
• Transmitting Full HD and 4K@30Hz video content
• Using Audio Return Channel (ARC) and Consumer Electronics Control (CEC) functions

Key specifications

• Standard: HDMI 1.4
• Maximum data rate: 10.2 Gbit/s
• Maximum resolution: 3840 x 2160 (4K@30Hz)
• Connectors: HDMI Type A (Standard) to HDMI Type C (Mini)
• Features: HDCP 2.2, ARC, CEC, 3D support
• Length: 2 m
• Colour: Black
• Weight: 0.09 kg

How to use

Connect the HDMI Type C (mini) end to the source device (for example a camera, camcorder or tablet) and the HDMI Type A (standard) end to the display, TV or AV receiver. Ensure both devices are powered on and set the display input to the corresponding HDMI port. If required, enable ARC or CEC in the device menus to use audio return or remote control functions.

Recommendations

For optimal performance, avoid tight bends and kinks in the cable and keep cable runs as short as practical. Ensure connectors are fully inserted and compatible with the devices’ HDMI versions; for higher frame rates or HDR features, consider an HDMI cable compliant with newer HDMI standards.
