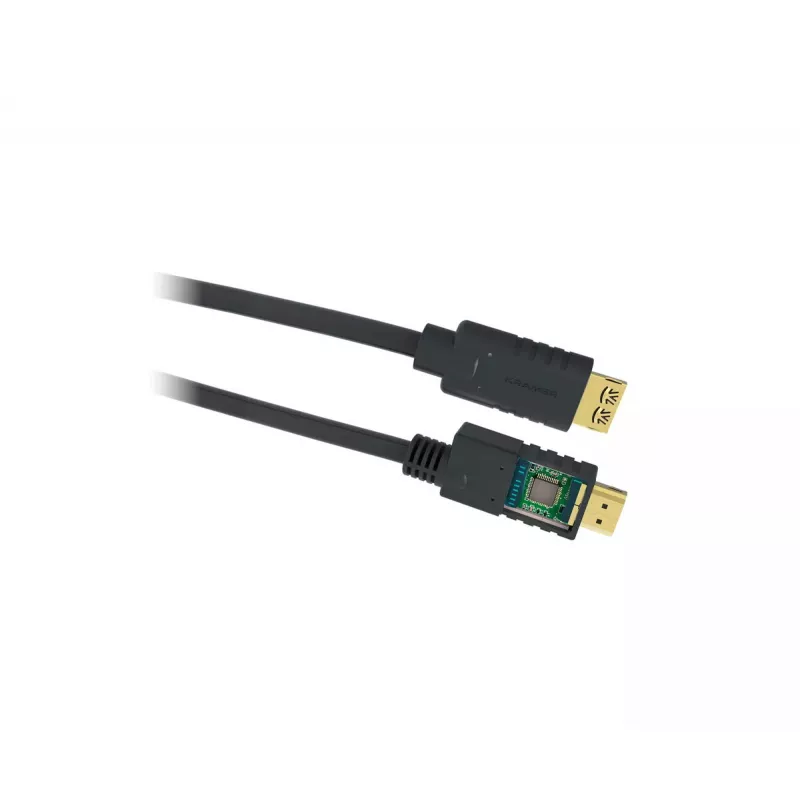

HDMI-kabel Kramer Electronics CA-HM 20 m

The Kramer Electronics CA-HM HDMI cable is a 20 m copper cable with HDMI Type A connectors on both ends, designed to deliver stable HDMI signals over long distances. It supports data rates up to 18 Gbps at 20 m and up to 10.2 Gbps at 30 m, 3D formats and Audio Return Channel (ARC). The connector draws power from the HDMI source, enabling plug & play operation without an external power supply, and includes a status LED that indicates successful signal transmission.

Advantages

The cable uses advanced equalizing and signal compensation in the connector to preserve signal integrity in Pro AV installations. It features Kramer’s K-Lock HDMI connector to prevent unintentional disconnection and gold-plated contacts for reliable contact and reduced corrosion. The built-in power draw eliminates the need for an external power adapter.

Suitable for

• Long-distance connections between AV sources and displays (up to 20 m at 18 Gbps)
• Professional AV installations where secure cable retention is required
• Setups that require 3D and ARC support
• Environments where plug & play operation without external power is preferred

Key specifications

• Brand: Kramer Electronics
• Model: CA-HM (MPN: 97-0142066)
• Length: 20 m
• Connectors: HDMI Type A to HDMI Type A
• Maximum data rate: 18 Gbps at 20 m; 10.2 Gbps up to 30 m
• Supported features: 3D, Audio Return Channel (ARC)
• Color: Black
• EAN: 7291063086107

How to use

Connect one HDMI Type A end to the source device and the other end to the display or receiver. The cable will draw power from the HDMI source for its active equalizing circuitry; no external power adapter is required. Ensure the K-Lock connector is engaged to secure the connection. Check the LED on the connector to confirm successful signal transmission.

Recommendations

For optimal performance, avoid tight bends near the connectors, route the cable away from strong electromagnetic interference sources, and verify source and display settings to match the supported resolutions and features. Use the cable within its specified distance limits for the required data rate.
