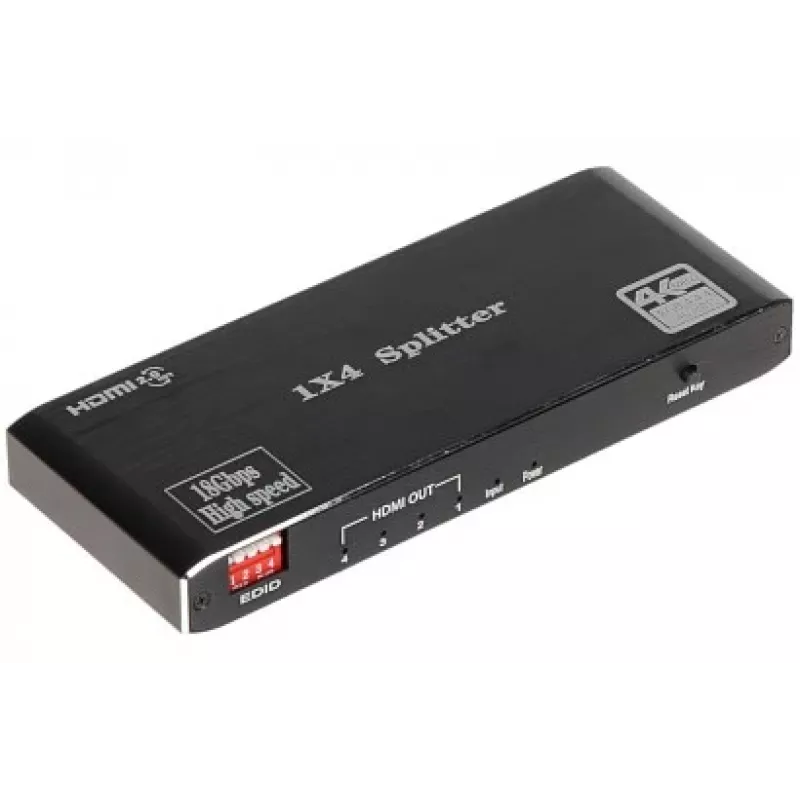

HDMI-splitter 1x4 4K 60Hz HDMI 2.0

This HDMI Splitter 1x4 allows you to distribute one HDMI source signal to four displays simultaneously. With support for HDMI 2.0, it delivers stunning 4K resolution at 60Hz, HDR10, and HLG, ensuring high-quality video and audio. Ideal for home theaters, conference rooms, digital signage, and gaming setups.

Advantages

Plug and play installation with automatic EDID management ensures seamless compatibility. The metal casing provides durability and effective heat dissipation. LED indicators for power and input/output status allow easy monitoring.

Suitable for

• Home entertainment systems
• Professional presentations and conferences
• Digital signage and retail displays
• Gaming and live streaming

Key specifications

• HDMI Standard: HDMI 2.0
• Max Resolution: 4K (3840x2160) @ 60Hz
• HDCP Version: HDCP 2.2
• Input Ports: 1 x HDMI Type A Female
• Output Ports: 4 x HDMI Type A Female
• Video Bandwidth: 18 Gbps
• Color Depth: 8/10/12-bit Deep Color
• Audio Formats: DTS-HD Master Audio, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3, DSD
• HDR Support: HDR10, HLG
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Power Supply: DC 5V / 1A (via AC adapter)
• Max Input Cable Length: Up to 5m (AWG26 HDMI 2.0 cable)
• Max Output Cable Length: Up to 10m (AWG26 HDMI 2.0 cable)
• Casing Material: Metal
• Operating Temperature: 0 to 40 °C
• Storage Temperature: -20 to 60 °C
• LED Indicators: Power, Input, Output Status
• Plug and Play: Yes
• EDID Management: Automatic
• Power Consumption: < 3.5W

Recommendations

For optimal performance, use high-quality HDMI 2.0 cables. Ensure the power adapter is connected to a stable power source. This splitter is compatible with all HDMI 2.0 sources and displays.
